DTC143EKA - Digital transistors

ETL

📥 Download Datasheet

DTC143EKA Datasheet Preview — Preview of DTC143EKA PDF

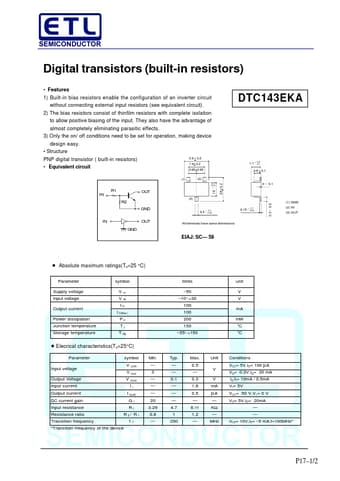

datasheet Preview Page 2

Datasheet Details

Part number	DTC143EKA
Manufacturer	ETL
File Size	99.53 KB
Description	Digital transistors
Datasheet	DTC143EKA-ETL.pdf

DTC143EKA Product details

Features

s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/ off conditions need to be set for operation, making device design easy.
Structure PNP digital transistor ( built-in resis.
