DTC114YKA - Digital transistors

ETL

📥 Download Datasheet

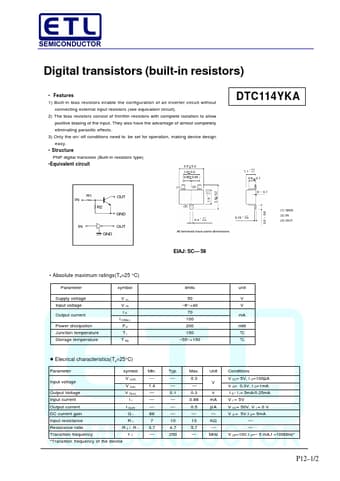

DTC114YKA Datasheet Preview — Preview of DTC114YKA PDF

datasheet Preview Page 2

Datasheet Details

Part number	DTC114YKA
Manufacturer	ETL
File Size	97.91 KB
Description	Digital transistors
Datasheet	DTC114YKA-ETL.pdf

DTC114YKA Product details

Features

s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/ off conditions need to be set for operation, making device design easy.
Structure PNP digital transistor (Built-in resist.
