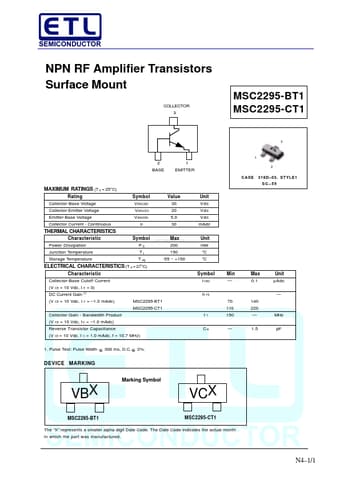

NPN RF Amplifier Transistors Surface Mount COLLECTOR 3 MSC2295-BT1 MSC2295-CT1 3 1 2 BASE 1 EMITTER CASE 2 318D–03, STYLE1 SC–59 MAXIMUM RATINGS (T A = 25°C) Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current - Continuous Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC Symbol PD TJ T stg Value 30 20 5.0 30 Max 200 150 -55 ~ +150 Unit Vdc Vdc Vdc mAdc Unit mW °C °C Symbol I CBO h FE MSC2295-BT1 MSC2295-CT1 fT C re 70 110 150 — 140 220 — 1.5 Min — Max 0.1 Unit µ Adc — THERMAL CHARACTERISTICS Characteristic Power Dissipation Junction Temperature Storage Temperature Characteristic Collector-Base Cutoff Current (V CB = 10 Vdc, I E = 0) DC Current Gain (1) (V CB = 10 Vdc, I C = –1.0 mAdc) www.DataSheet4U.
