MSC2313258A - DRAM-MODULE

Product Overview

OKI electronic componets

Datasheet Details

Part number	MSC2313258A
Manufacturer	OKI electronic componets
File Size	123.20 KB
Description	DRAM-MODULE
Datasheet	MSC2313258A Datasheet

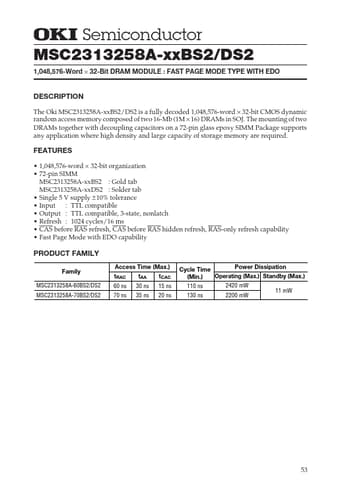

Additional preview pages of the MSC2313258A datasheet.

Product details

Description

¡ Semiconductor MSC2313258A-xxBS2/DS2 1,048,576-Word 32-Bit DRAM MODULE : FAST PAGE MODE TYPE WITH EDO 1 The Oki MSC2313258A-xxBS2/DS2 is a fully decoded 1,048,576-word 32-bit CMOS dynamic random access memory composed of two 16-Mb (1M 16) DRAMs in SOJ.

Features

1,048,576-word.
32-bit organization.
72-pin SIMM MSC2313258A-xxBS2 : Gold tab MSC2313258A-xxDS2 : Solder tab.
Single 5 V supply ± 10% tolerance.
Input : TTL compatible.
Output : TTL compatible, 3-state, nonlatch.
Refresh : 1024 cycles/16 ms.
CAS before RAS refresh, CAS before RAS hidden refresh, RAS-only refresh capability.
Fast Page Mode with EDO capability.
