MSC23132DL, MSC23132D, DRAM-MODULE

www.DataSheet.co.kr This version: Feb.23.1999 Semiconductor MSC23132D/DL-xxBS8/DS8 1,048,576-word x 32-bit DYNAMIC RAM MODULE : FAST PAGE MODE TY.
The MSC23132D/DL-xxBS8/DS8 is a fully decoded, 1,048,576-word x 32-bit CMOS dynamic random access memory module composed of eight 4Mb DRAMs in SOJ pac.

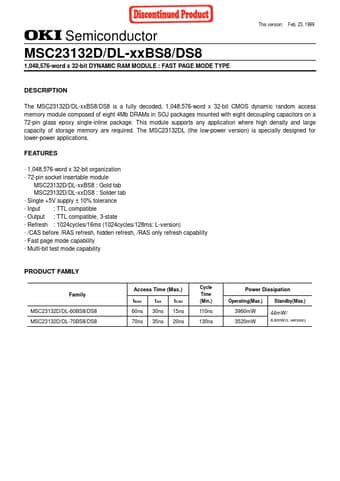

datasheet Preview Page 1 from Datasheet4u.com

MSC23132D_OKIelectroniccomponets.pdf

MSC23132DL Datasheet Preview — This datasheet PDF includes multiple part numbers: MSC23132DL, MSC23132D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSC23132DL, MSC23132D

Manufacturer:

OKI electronic componets

File Size:

142.43 KB

Description:

DRAM-MODULE

Note:

This datasheet PDF includes multiple part numbers: MSC23132DL, MSC23132D.
Please refer to the document for exact specifications by model.

Features

* 1,048,576-word x 32-bit organization
* 72-pin socket insertable module MSC23132D/DL-xxBS8 : Gold tab MSC23132D/DL-xxDS8 : Solder tab
* Single +5V supply ± 10% tolerance
* Input : TTL compatible
* Output : TTL compatible, 3-state
* Refresh : 1024cycles/16ms (1024cycles/128ms
