MUN2115RT1 Datasheet - ETL

MUN2115RT1 Bias Resistor Transistor

Bias Resistor Transistor PNP Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use o.

MUN2115RT1 Datasheet (307.16 KB)

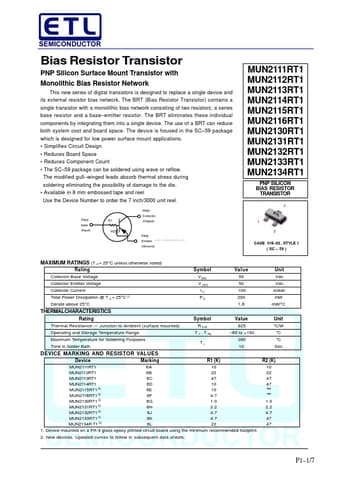

Preview of MUN2115RT1 PDF
MUN2115RT1 Datasheet Preview Page 2 MUN2115RT1 Datasheet Preview Page 3

Datasheet Details

Part number:

MUN2115RT1

Manufacturer:

ETL

File Size:

307.16 KB

Description:

Bias resistor transistor.
