EM62GT - CMOS 6 pad SMD kHz Range

Datasheet Summary

Description

EM62GT series TCXOs are packaged in a miniature 6 pad ceramic SMD package.

With squarewave (CMOS) output, tolerances are available from ±1.0ppm over -30° to +75°C.

The part has a 0.01mF decoupling capacitor built in.

📥 Download Datasheet

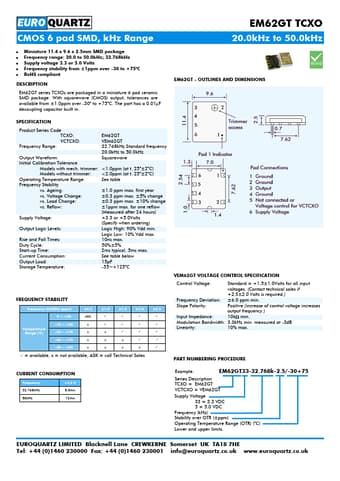

Datasheet preview – EM62GT

Datasheet Details

Part number EM62GT
Manufacturer EUROQUARTZ limited
File Size 203.72 KB
Description CMOS 6 pad SMD kHz Range
Datasheet download datasheet EM62GT Datasheet
Additional preview pages of the EM62GT datasheet.

📁 Similar Datasheet

  • EM620FU16 - 128K x 16 bit Super Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory & Logic Solutions)
  • EM620FU8B - 256K x8 bit Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory & Logic Solutions)
  • EM620FV8B - 256K x 8 bit Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory & Logic Solutions)
  • EM620FV8BT - 256K x8 bit Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory & Logic Solutions)
  • EM621FU16BU - 128K x 16 bit Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory)
  • EM621FV16BU - 128K x16 bit Low Power and Low Voltage Full CMOS Static RAM (Emerging Memory & Logic Solutions)
  • EM60000 - Stereo Four Channels 8-Bit Based Sound Processor (ELAN Microelectronics Corp)
  • EM60001 - Stereo Four Channels 8-Bit Based Sound Processor (ELAN Microelectronics)
  • EM60101 - Stereo Four Channels 8-Bit Based Sound Processor (ELAN Microelectronics)
  • EM6011 - Electret Condenser Microphone (UNIS)
Other Datasheets by EUROQUARTZ limited
  • EM62GT - CMOS 6 pad SMD kHz Range
  • EM62GT - CMOS 6 pad SMD kHz Range
  • EM62K - ULTRA-LOW CURRENT
  • EM62K - ULTRA-LOW CURRENT
  • EM62K - ULTRA-LOW CURRENT
  • EM64GT - CMOS 6 pad SMD kHz Range
  • EM64K - ULTRA-LOW CURRENT

Full PDF Text Transcription

Click to expand full text
EURO QUARTZ CMOS 6 pad SMD, kHz Range Miniature 11.4 x 9.6 x 2.5mm SMD package Frequency range: 20.0 to 50.0kHz; 32.768kHz Supply voltage 3.3 or 5.0 Volts Frequency stability from ±1ppm over -30 to +75°C RoHS compliant EM62GT TCXO 20.0kHz to 50.0kHz EM62GT - OUTLINES AND DIMENSIONS DESCRIPTION EM62GT series TCXOs are packaged in a miniature 6 pad ceramic SMD package. With squarewave (CMOS) output, tolerances are available from ±1.0ppm over -30° to +75°C. The part has a 0.01mF decoupling capacitor built in. SPECIFICATION Product Series Code TCXO: VCTCXO: Frequency Range: Output Waveform: Initial Calibration Tolerance Models with mech. trimmer: Models without trimmer: Operating Temperature Range: Frequency Stability vs. Ageing: vs. Voltage Change: vs. Load Change: vs.
