ZTB456F14 Datasheet - EUROQUARTZ

ZTB456F14 (ZTB Series) CERAMIC RESONATORS

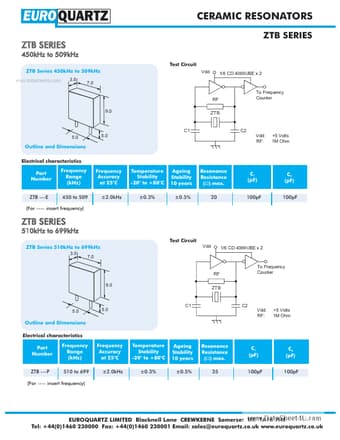

EURO QUARTZ ZTB SERIES 450kHz to 509kHz Test Circuit ZTB Series 450kHz to 509kHz www.datasheet4u.com CERAMIC RESONATORS ZTB SERIES Vdd 1/6 CD 4069UBE x 2 3.5 7.0 RF 9.0 To Frequency Counter ZTB 5.0 5.0 C1 C2 Vdd: RF: +5 Volts 1M Ohm Outline and Dimensions Electrical characteristics Part Number ZTB -E Frequency Range (kHz) 450 to 509 Frequency Accuracy at 25°C ±2.0kHz Temperature Stability -20° to +80°C ±0.3% Ageing Stability 10 years ±0.5% Resonance Resistance (W) m.

ZTB456F14 Datasheet (73.18 KB)

ZTB456F14 Datasheet Preview — Preview of ZTB456F14 PDF

Datasheet Details

Part number:

ZTB456F14

Manufacturer:

EUROQUARTZ

File Size:

73.18 KB

Description:

(ztb series) ceramic resonators.
