ZTB456F23 - (ZTB Series) CERAMIC RESONATORS

This page provides the datasheet information for the ZTB456F23, a member of the ZTB450E (ZTB Series) CERAMIC RESONATORS family.

EUROQUARTZ

📥 Download Datasheet

Datasheet Details

Part number	ZTB456F23
Manufacturer	EUROQUARTZ
File Size	73.18 KB
Description	(ZTB Series) CERAMIC RESONATORS
Datasheet	ZTB456F23 Datasheet
Additional preview pages of the ZTB456F23 datasheet.

📁 Similar Datasheet

ZTB456F - (ZTBxxx) Ceramic Resonator (TOKEN)
ZTB456F - Ceramic Resonator (YIC)
ZTB456F11 - Ceramic Resonators (Token)
ZTB456F15 - Ceramic Resonators (Token)
ZTB456F16 - Ceramic Resonators (Token)
ZTB456F18 - Ceramic Resonators (Token)
ZTB456F33 - Ceramic Resonators (Token)
ZTB455E - Through Hole Ceramic Resonators (US Electronics)
ZTB455E - Ceramic resonator (ECS)
ZTB455EH - High Temperature Through Hole Ceramic Resonators (US Electronics)

Other Datasheets by EUROQUARTZ

ZTB456F - (ZTB Series) CERAMIC RESONATORS
ZTB456F11 - (ZTB Series) CERAMIC RESONATORS
ZTB456F14 - (ZTB Series) CERAMIC RESONATORS
ZTB456F15 - (ZTB Series) CERAMIC RESONATORS
ZTB456F16 - (ZTB Series) CERAMIC RESONATORS
ZTB456F18 - (ZTB Series) CERAMIC RESONATORS
ZTB456E - (ZTB Series) CERAMIC RESONATORS
ZTB450E - (ZTB Series) CERAMIC RESONATORS

Full PDF Text Transcription

Click to expand full text

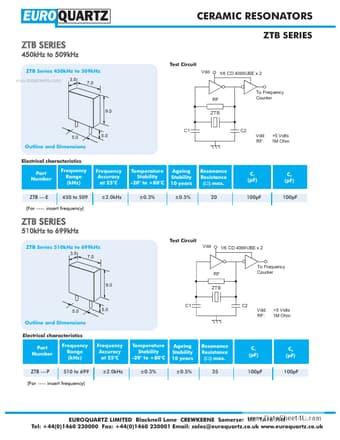

EURO QUARTZ ZTB SERIES 450kHz to 509kHz Test Circuit ZTB Series 450kHz to 509kHz www.datasheet4u.com CERAMIC RESONATORS ZTB SERIES Vdd 1/6 CD 4069UBE x 2 3.5 7.0 RF 9.0 To Frequency Counter ZTB 5.0 5.0 C1 C2 Vdd: RF: +5 Volts 1M Ohm Outline and Dimensions Electrical characteristics Part Number ZTB ---E Frequency Range (kHz) 450 to 509 Frequency Accuracy at 25°C ±2.0kHz Temperature Stability -20° to +80°C ±0.3% Ageing Stability 10 years ±0.5% Resonance Resistance (W) max. 20 C1 (pF) 100pF C2 (pF) 100pF (For ---- insert frequency) ZTB SERIES 510kHz to 699kHz Test Circuit ZTB Series 510kHz to 699kHz 3.5 7.0 Vdd 1/6 CD 4069UBE x 2 RF 9.0 To Frequency Counter ZTB 5.0 5.
