CR2032 Datasheet - EVE

CR2032 - Lithium Manganese Dioxide Coin Batteries

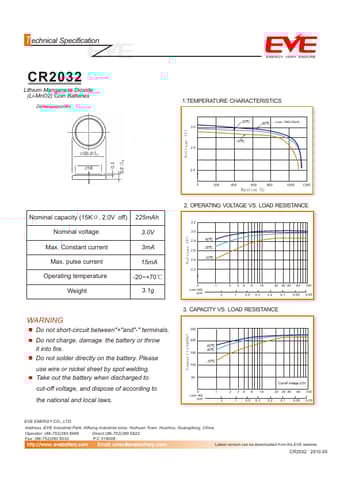

T echnical Specification CR2032 Lithium Manganese Dioxide (Li-MnO2) Coin Batteries Dimensions(mm) ENERGY VERY ENDURE 1.TEMPERATURE CHARACTERISTICS 20 C 60 C Load: 15kΩ(190µA) 3.0 -10 C 2.5 Voltage (V) Nominal capacity (15KΩ,2.0V off) 225mAh Nominal voltage 3.0V Max.

Constant current 3mA Max.

pulse current 15mA Operating temperature Weight -20~+70℃ 3.1g WARNING Do not short-circuit between"+"and"-" terminals.

Do not charge, damage the battery or throw it into fire.

Do not solder

CR2032-EVE.pdf

Preview of CR2032 PDF

Datasheet Details

Part number:

CR2032

Manufacturer:

EVE

File Size:

101.47 KB

Description:

Lithium manganese dioxide coin batteries.
