CR2320 Datasheet (EVE) - Coin Batteries

CR2320, Coin Batteries

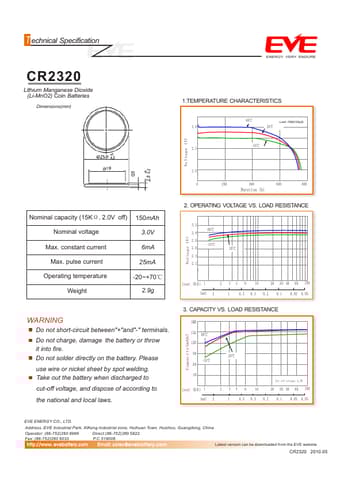

T echnical Specification CR2320 Lithium Manganese Dioxide (Li-MnO2) Coin Batteries Dimensions(mm) ENERGY VERY ENDURE 1.TEMPERATURE CHARACTERISTICS 60℃ Load: 15kΩ(190µA) 3.0 20℃ -10℃ 2.5 Voltage (V) 2.0 ~~ 0 200 400 600 800 Duration (h) Nominal capacity (15KΩ,2.0V off) 150mAh Nominal voltage 3.0V Max.

constant current 6mA Max.

pulse current Operating temperature Weight 25mA -20~+70℃ 2.9g 2.

OPERATING VOLTAGE VS.

LOAD RESISTANCE Voltage (V) 3.2 60℃ 3.0 2.8 -10℃ 2.6 2.4 2.2 ~~ 20
