IRM-H138-TR2 Datasheet - EVERCOLORS

Infrared Remote-control Receiver

IRM-H138-TR2 Features

* ‧High shielding against electric field disturbance. ‧Low voltage and low power consumption. ‧Very small sizes. ‧External dimensions 7.40(L)

* 5.50(W)

* 2.55(H) mm. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧High sensitivity. ‧Top-rece

IRM-H138-TR2 General Description

The device is a miniature SMD type infrared remote control system receiver that has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on PCB, the epoxy package is designed as an IR filter. The demodulated output signal can directly.

IRM-H138-TR2 Datasheet (432.41 KB)

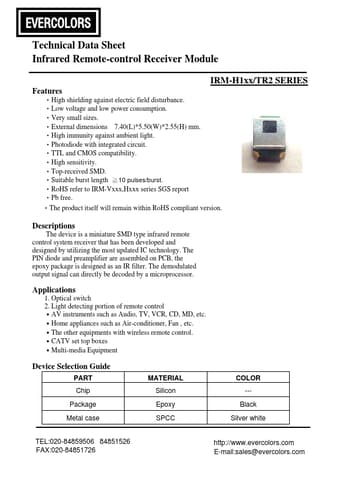

IRM-H138-TR2 Datasheet Preview — Preview of IRM-H138-TR2 PDF

Datasheet Details

Part number:

IRM-H138-TR2

Manufacturer:

EVERCOLORS

File Size:

432.41 KB

Description:

Infrared remote-control receiver.
