IRM-V038-TR1 Datasheet - EVERCOLORS

Infrared Remote-control Receiver

IRM-V038-TR1 Features

* ‧High shielding against electric field disturbance. ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧

IRM-V038-TR1 General Description

The device is a miniature SMD type infrared remote control system receiver that has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on PCB, the epoxy package is designed as an IR filter. The demodulated output signal can directly.

IRM-V038-TR1 Datasheet (327.09 KB)

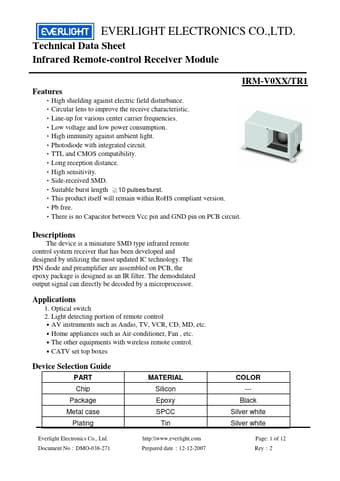

IRM-V038-TR1 Datasheet Preview — Preview of IRM-V038-TR1 PDF

Datasheet Details

Part number:

IRM-V038-TR1

Manufacturer:

EVERCOLORS

File Size:

327.09 KB

Description:

Infrared remote-control receiver.
