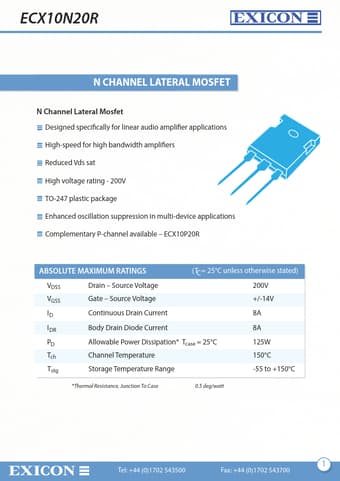

ECX10N20R N-CHANNEL LATERAL MOSFET

ECX10N20R N CHANNEL LATERAL MOSFET N Channel Lateral Mosfet Designed speci cally for linear audio ampli er applications High-speed for high bandwidth ampli ers Reduced Vds sat High voltage rating - 200V TO-247 plastic package Enhanced oscillation suppression in multi-device applications Complementary P-channel available ECX10P20R ABSOLUTE MAXIMUM RATINGS (TC= 25°C unless otherwise stated) VDSS Drain Source Voltage 200V VGSS Gate Source Voltage +/-14V ID Cont.
