EZ86-75-TP, EZ86M17 - Cable

The EZ86-75-TP by EZ Form Cable is a Cable. Below is the official datasheet preview.

Datasheet Details

Part number	EZ86-75-TP, EZ86M17
Manufacturer	EZ Form Cable
File Size	747.80 KB
Description	Cable
Datasheet	EZ86M17_EZFormCable.pdf
Note	This datasheet PDF includes multiple part numbers: EZ86-75-TP, EZ86M17. Please refer to the document for exact specifications by model.

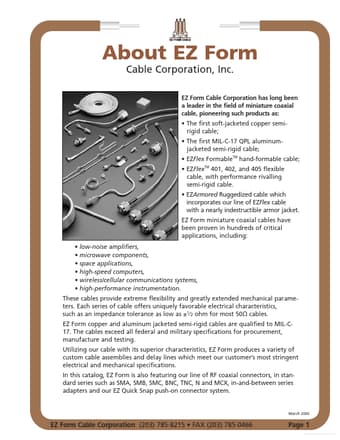

Additional preview pages of the EZ86-75-TP datasheet.

Two series of solid-jacketed semi-rigid (copper and aluminum), and two series of hand-formable cables: EZFlexTM (ﬂexible) and EZFlex FormableTM (featuring a tinned braid outer conductor for 100% shielding).
a type to suit virtually every high-frequency requirement.
Minimum VSWR.
Impedance tolerances as low as ±1⁄ 2Ω.
Smooth attenuation vs. frequency curve.
Easily formed; EZFlex cable withstands repeated ﬂexing better than standard semi-r.
