EZ86-75AL - Cable

Product Overview

📥 Download Datasheet

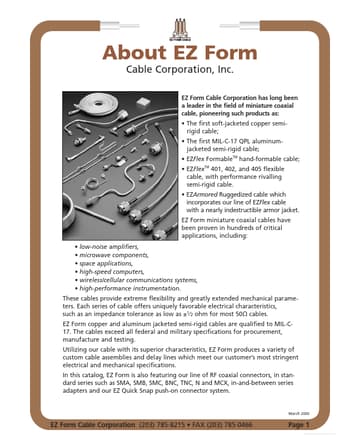

EZ86-75AL Cable by EZ Form Cable - Datasheet Preview — Datasheet preview – EZ86-75AL

Datasheet Details

Part number	EZ86-75AL
Manufacturer	EZ Form Cable
File Size	747.80 KB
Description	Cable
Datasheet	EZ86-75AL Datasheet
Note	This datasheet PDF includes multiple part numbers: EZ86-75AL, EZ86M17. Please refer to the document for exact specifications by model.
Additional preview pages of the EZ86-75AL datasheet.

Product details

Features

Two series of solid-jacketed semi-rigid (copper and aluminum), and two series of hand-formable cables: EZFlexTM (ﬂexible) and EZFlex FormableTM (featuring a tinned braid outer conductor for 100% shielding).
a type to suit virtually every high-frequency requirement.
Minimum VSWR.
Impedance tolerances as low as ±1⁄ 2Ω.
Smooth attenuation vs. frequency curve.
Easily formed; EZFlex cable withstands repeated ﬂexing better than standard semi-r.
