MPI2520R0-1R0-R Datasheet - Eaton

Miniature Power Inductors

MPI2520R0-1R0-R General Description

* Halogen free, lead free, RoHS compliant * 125°C maximum total temperature operation * 2.7 x 2.2 x 1.0 / 1.2mm maximum surface mount package * Magnetically shielded, low EMI * Inductance range from 0.47µH to 10.0µH * Current range from 1..

MPI2520R0-1R0-R Datasheet (832.50 KB)

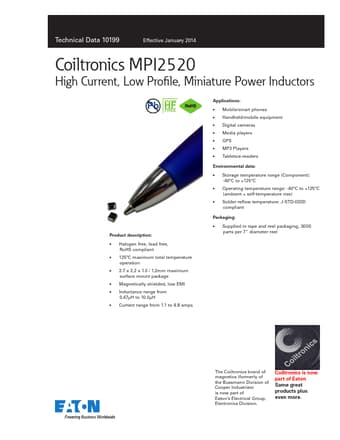

Preview of MPI2520R0-1R0-R PDF

Datasheet Details

Part number:

MPI2520R0-1R0-R

Manufacturer:

Eaton

File Size:

832.50 KB

Description:

Miniature power inductors.
Technical Data 10199 Effective January 2014 Coiltronics MPI2520 High Current, Low Profile, Miniature Power Inductors Pb HFHALOGEN FREE Product desc.
