MPI2520R0-1R5-R, MPI2520 - Miniature Power Inductors

Eaton

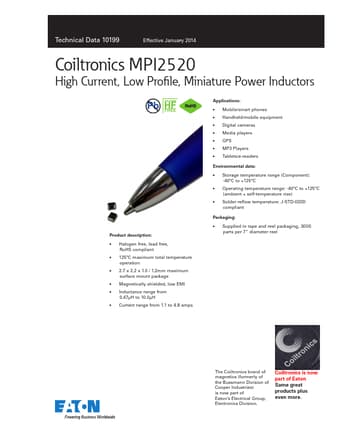

MPI2520R0-1R5-R Datasheet Preview — This datasheet PDF includes multiple part numbers: MPI2520R0-1R5-R, MPI2520. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MPI2520R0-1R5-R, MPI2520
Manufacturer	Eaton
File Size	832.50 KB
Description	Miniature Power Inductors
Datasheet	MPI2520-Eaton.pdf
Note	This datasheet PDF includes multiple part numbers: MPI2520R0-1R5-R, MPI2520. Please refer to the document for exact specifications by model.

MPI2520R0-1R5-R Product details

Description

Halogen free, lead free, RoHS compliant 125°C maximum total temperature operation 2.7 x 2.2 x 1.0 / 1.2mm maximum surface mount package Magnetically shielded, low EMI Inductance range from 0.47µH to 10.0µH Current range from 1.1 to 4.8 amps Applications: Mobile/smart phones Handheld/mobile equipment Digital cameras Media players GPS MP3 Players Ta
