AD62552A

High Integrated USB Audio Controller

AD62552A Features

* Preliminary High Integrated USB Audio Controller AD62552A z Compliant with USB Specification v1.1, and USB 2.0 full speed z Embedded headphone driver z Embedded stereo dual ADC input z Microphone Boost z Support 16~24-bit I2S input and I2S output interface of master mode z Sampling frequencies(Fs

AD62552A General Description

AD62552A is a single chip integrated headphone driver, DAC, ADC and microphone booster. AD62552A can drive up to 70mW @16Ω. The device also has a master mode I2S input port and output port. The I2S input port allows other external audio sources to be recorded by host and mixed to headphone. The I2S .

AD62552A Datasheet (164.22 KB)

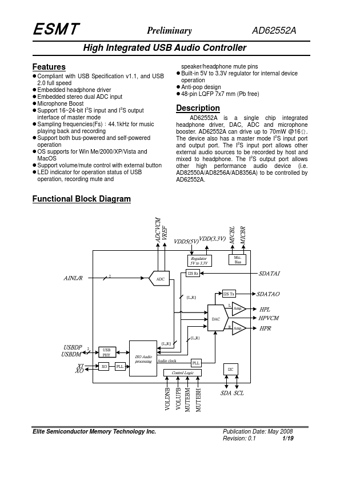

Preview of AD62552A PDF

Datasheet Details

Part number:

AD62552A

Manufacturer:

Elite Semiconductor

File Size:

164.22 KB

Description:

High integrated usb audio controller.
