AD62550A

Class-D Audio Power Amplifier

AD62550A Features

* z Compliant with USB Specification v1.1, and USB 2.0 full speed z Embedded high efficiency, high performance class D stereo amplifier z Support I2S input and I2S output interface of master mode Sampling frequencies(Fs):48kHz z +6dB enhancement(Theater function) z Support both bus-powered and self-po

AD62550A General Description

AD62550A is a single chip of Class-D audi o amplifier with USB/I 2S interface. Whe n using th e power supplied from the USB port, AD62 550A can drive a pair of up to 1W speakers due to the built-in, high ef ficiency and high perform ance cla ss D amplifiers. The device also has an I2S input port and.

AD62550A Datasheet (317.59 KB)

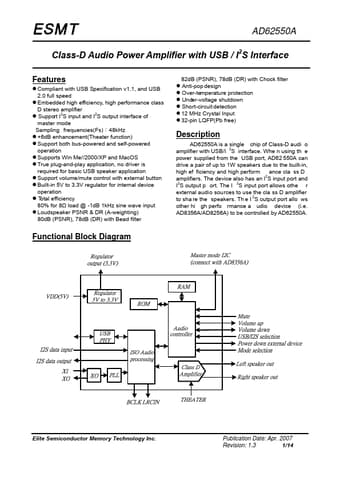

Preview of AD62550A PDF

Datasheet Details

Part number:

AD62550A

Manufacturer:

ESMT

File Size:

317.59 KB

Description:

Class-d audio power amplifier.
