F25L016A - 3V Only Serial Flash Memory

Datasheet Summary

The F25L016A is a 16Megablt, 3V only CMOS Serial Flash memory device organized as 2M bytes of 8 bits.

This device is packaged in 8-lead SOIC 200mil.

ESMT’s memory devices reliably store memory data even after 100,000 program and erase cycles.

S y Single supply voltage 2.7~3.6V y Speed - Read max frequency : 33MHz - Fast Read max frequency : 50MHz;100MHz y Low power consumption - typical active current - 15 μ A typical standby current y Reliability - 100,000 typical program/erase cycles - 20 years Data Retention y Program - Byte program time 7 μ s(typical) y Erase - Chip erase time 10s(typical) - Block erase time 1sec (typical) - Sector erase time 90ms(typical) F25L016A 16Mbit (2Mx8) 3V Only Serial Flash Memory y Auto Address Increme.

Elite Semiconductor

Part number	F25L016A
Manufacturer	Elite Semiconductor
File Size	370.54 KB
Description	3V Only Serial Flash Memory
Datasheet	F25L016A Datasheet

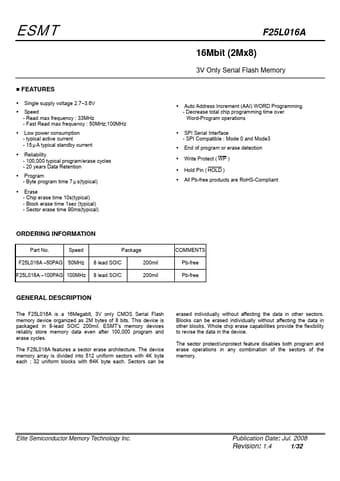

Additional preview pages of the F25L016A datasheet.

Other Datasheets by Elite Semiconductor

Click to expand full text

ESMT FEATURES y Single supply voltage 2.7~3.
