F25L01PA - 3V Only 1 Mbit Serial Flash Memory

Datasheet Summary

Description

The F25L01PA is a 1Megabit, 3V only CMOS Serial Flash memory device.

The device supports the standard Serial Peripheral Interface (SPI), and a Dual SPI.

ESMT’s memory devices reliably store memory data even after 100,000 programming and erase cycles.

Features

  • S y Single supply voltage 2.7~3.6V y Standard, Dual SPI y Speed - Read max frequency: 33MHz - Fast Read max frequency: 50MHz; 86MHz; 100MHz - Fast Read Dual max frequency: 50MHz / 86MHz (100MHz / 172MHz equivalent Dual SPI) y Low power consumption - Active current: 22 mA - Standby current: 25 μ A - Deep Power Down current: 10 μ A y Reliability - 100,000 typical program/erase cycles - 20 years Data Retention y Program - Page programming time: 1.5 ms (typical) F25L01PA (2D) 3V Only 1 M bit Serial.

📥 Download Datasheet

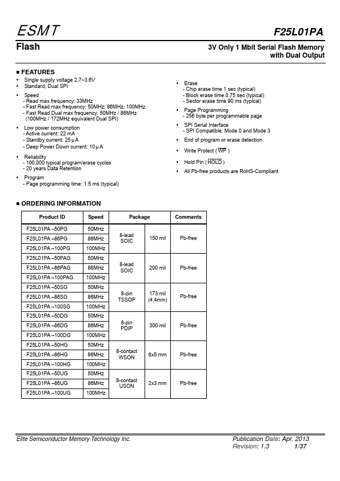

Datasheet preview – F25L01PA

Datasheet Details

Part number F25L01PA
Manufacturer Elite Semiconductor
File Size 399.64 KB
Description 3V Only 1 Mbit Serial Flash Memory
Datasheet download datasheet F25L01PA Datasheet
Additional preview pages of the F25L01PA datasheet.

📁 Similar Datasheet

Other Datasheets by Elite Semiconductor
  • F25L016A - 3V Only Serial Flash Memory
  • F25L004A - 4Mbit (512Kx8) 3V Only Serial Flash Memory
  • F25L008A - 8Mbit (1Mx8) 3V Only Serial Flash Memory
  • F25L08QA - 8 Mbit Serial Flash Memory
  • F25L16PA - 16 Mbit Serial Flash Memory
  • F25L64QA - 64 Mbit Serial Flash Memory
  • F25D08QA - 8 Mbit Serial Flash Memory
  • F25D64QA - 64 Mbit Serial Flash Memory

Full PDF Text Transcription

Click to expand full text
ESMT Flash „ FEATURES y Single supply voltage 2.7~3.6V y Standard, Dual SPI y Speed - Read max frequency: 33MHz - Fast Read max frequency: 50MHz; 86MHz; 100MHz - Fast Read Dual max frequency: 50MHz / 86MHz (100MHz / 172MHz equivalent Dual SPI) y Low power consumption - Active current: 22 mA - Standby current: 25 μ A - Deep Power Down current: 10 μ A y Reliability - 100,000 typical program/erase cycles - 20 years Data Retention y Program - Page programming time: 1.5 ms (typical) F25L01PA (2D) 3V Only 1 M bit Serial Flash Memory with Dual Output y Erase - Chip erase time 1 sec (typical) - Block erase time 0.
