A733 PNP Epitaxial Silicon Transistor

A733 PNP Epitaxial Silicon Transistor LOW FREQUENCY AMPLIFIER Collector-Emitter Voltage: VCEO=-50V Collector Dissipation: PC(max)=250mW Absolute Maximum Ratings (TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC TJ TSTG Rating -60 -50 -5 -150 250 150 -55~+150 Unit V V V mA mW o o C C Electrical Characteristics (TA=25oC) Characteristic Collec.

A733-Elite.pdf

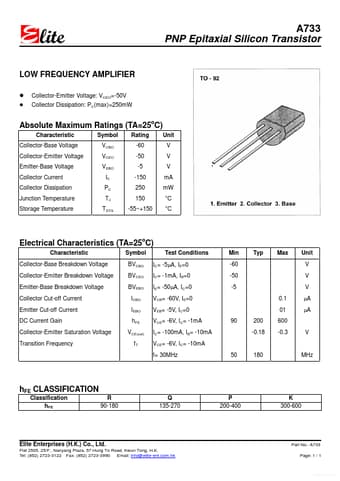

A733 Datasheet Preview — Preview of A733 PDF

Datasheet Details

Part number:

A733

Manufacturer:

Elite

File Size:

107.58 KB

Description:

Pnp epitaxial silicon transistor.
