D5108AFTA-5B-E Datasheet - Elpida Memory

D5108AFTA-5B-E - EDD5108AFTA-5B-E

DATA SHEET 512M bits DDR SDRAM EDD5108AFTA (64M words × 8 bits) EDD5116AFTA (32M words × 16 bits) Specifications Density: 512M bits Organization ⎯ 16M words × 8 bits × 4 banks (EDD5108AFTA) ⎯ 8M words × 16 bits × 4 banks (EDD5116AFTA) Package: 66-pin plastic TSOP (II) ⎯ Lead-free (RoHS compliant) Power supply: ⎯ DDR400: VDD, VDDQ = 2.6V ± 0.1V ⎯ DDR333, 266: VDD, VDDQ = 2.5V ± 0.2V Data rate: 400Mbps/333Mbps/266Mbps (max.) Four interna

D5108AFTA-5B-E Features

* Double-data-rate architecture; two data transfers per clock cycle

* The high-speed data transfer is realized by the 2 bits prefetch pipelined architecture

* Bi-directional data strobe (DQS) is transmitted /received with data for capturing data at the receiver

* Data

D5108AFTA-5B-E_ElpidaMemory.pdf

Preview of D5108AFTA-5B-E PDF

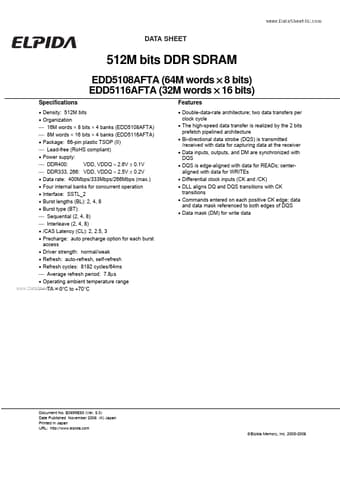

D5108AFTA-5B-E Datasheet Preview Page 2 D5108AFTA-5B-E Datasheet Preview Page 3

Datasheet Details

Part number:

D5108AFTA-5B-E

Manufacturer:

Elpida Memory

File Size:

563.70 KB

Description:

edd5108afta-5b-e.
