EDJ1108DBSE Datasheet - Elpida Memory

EDJ1108DBSE 128M words x 8 bits 1G bits DDR3 SDRAM

DATA SHEET 1G bits DDR3 SDRAM EDJ1108DBSE (128M words × 8 bits) EDJ1116DBSE (64M words × 16 bits) Specifications Density: 1G bits Organization  16M words × 8 bits × 8 banks (EDJ1108DBSE)  8M words × 16 bits × 8 banks (EDJ1116DBSE) Package  78-ball FBGA (EDJ1108DBSE)  96-ball FBGA (EDJ1116DBSE)  Lead-free (RoHS compliant) and Halogen-free Power supply: VDD, VDDQ = 1.5V ± 0.075V Data rate  1600Mbps/1333Mbps (max.) 1KB page size (.

EDJ1108DBSE Features

* Double-data-rate architecture; two data transfers per clock cycle

* The high-speed data transfer is realized by the 8 bits prefetch pipelined architecture

* Bi-directional differential data strobe (DQS and /DQS) is transmitted/received with data for capturing data at the re

EDJ1108DBSE-ElpidaMemory.pdf

Preview of EDJ1108DBSE PDF

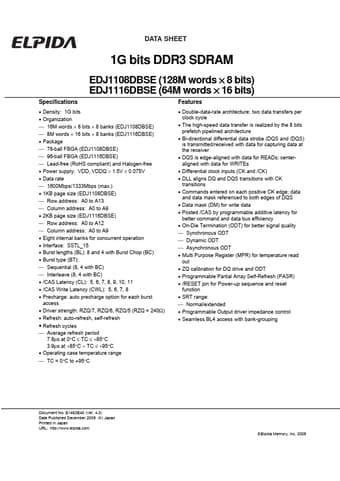

EDJ1108DBSE Datasheet Preview Page 2 EDJ1108DBSE Datasheet Preview Page 3

Datasheet Details

Part number:

EDJ1108DBSE

Manufacturer:

Elpida Memory

File Size:

2.19 MB

Description:

128m words x 8 bits 1g bits ddr3 sdram.
