EDB4064B3PB Datasheet - Elpida

EDB4064B3PB - 4G bits DDR2 Mobile RAM

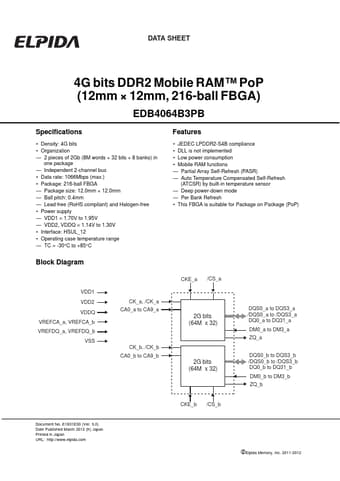

DATA SHEET 4G bits DDR2 Mobile RAM™ PoP (12mm × 12mm, 216-ball FBGA) EDB4064B3PB Specifications Density: 4G bits Organization 2 pieces of 2Gb (8M words × 32 bits × 8 banks) in one package Independent 2-channel bus Data rate: 1066Mbps (max.) Package: 216-ball FBGA Package size: 12.0mm × 12.0mm Ball pitch: 0.4mm Lead-free (RoHS compliant) and Halogen-free Power supply VDD1 = 1.70V to 1.9

EDB4064B3PB Features

* JEDEC LPDDR2-S4B compliance

* DLL is not implemented

* Low power consumption

* Mobile RAM functions

* Partial Array Self-Refresh (PASR)

* Auto Temperature Compensated Self-Refresh (ATCSR) by built-in temperature sensor

* Deep power-down mode

EDB4064B3PB-Elpida.pdf

Preview of EDB4064B3PB PDF
EDB4064B3PB Datasheet Preview Page 2 EDB4064B3PB Datasheet Preview Page 3

Datasheet Details

Part number:

EDB4064B3PB

Manufacturer:

Elpida

File Size:

130.79 KB

Description:

4g bits ddr2 mobile ram.
