DS850-3-002

AC-DC / Distributed Power Front-End 1U

DS850-3-002 Features

* Active power factor correction

* EN61000-3-2 harmonic compliance

* Active AC inrush control

* 1U X 2U form factor

* 15.4W/ in3

* 12 Vdc, 24 Vdc and 48 Vdc output

* +3.3 Vdc stand-by (5V standby - consult factory)

* No minimum load req

DS850-3-002 Datasheet (144.59 KB)

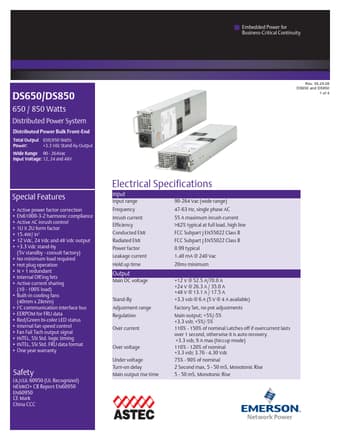

Preview of DS850-3-002 PDF

Datasheet Details

Part number:

DS850-3-002

Manufacturer:

Emerson

File Size:

144.59 KB

Description:

Ac-dc / distributed power front-end 1u.
Embedded Power for Business-Critical Continuity DS650/DS850 650 / 850 Watts Distributed Power System Distributed Power Bulk Front-End Total Output 65.
