NXI100-12P1V8CJ

DC-DC / Non-Isolated VRM Processor

NXI100-12P1V8CJ Features

* Designed for VRM9.0 and VRM9.1 specification

* Low profile: 1.15 inches including mating connector

* Microprocessor voltage identification input

* 5 Bit VID input

* 1.10 Vdc to 1.85 Vdc in 25 mV steps

* Up to 50 A/μs load transient no load to full lo

NXI100-12P1V8CJ Datasheet (238.62 KB)

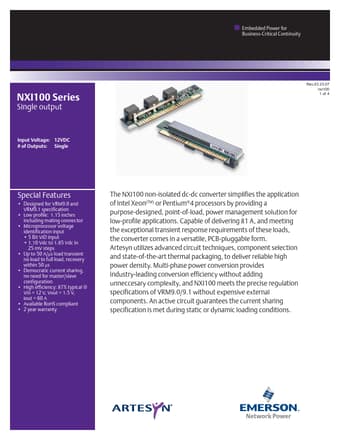

Preview of NXI100-12P1V8CJ PDF

Datasheet Details

Part number:

NXI100-12P1V8CJ

Manufacturer:

Emerson

File Size:

238.62 KB

Description:

Dc-dc / non-isolated vrm processor.
Embedded Power for Business-Critical Continuity NXI100 Series Single output Rev.03.23.07 nxi100 1 of 4 Input Voltage: 12VDC # of Outputs: Single S.
