* Designed for VRM9.0 and VRM9.1 specification
* Low profile: 1.15 inches including mating connector
* Microprocessor voltage identification input
* 5 Bit VID input
* 1.10 Vdc to 1.85 Vdc in 25 mV steps
* Up to 50 A/μs load transient no load to full lo

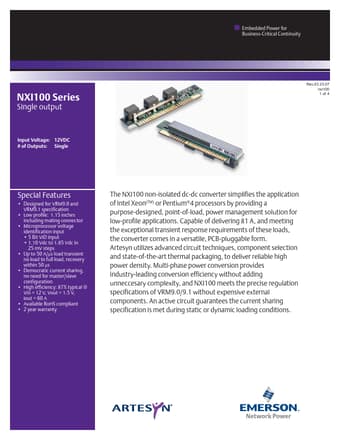

NXI100-12P1V8CY Datasheet (238.62 KB)
NXI100-12P1V8CY
Emerson
238.62 KB
Dc-dc / non-isolated vrm processor.
Embedded Power for Business-Critical Continuity
NXI100 Series
Single output
Rev.03.23.07 nxi100 1 of 4
Input Voltage: 12VDC # of Outputs: Single
S.
