NXI150-12P1V8CN2J

DC-DC / Non-Isolated VRM Processor

NXI150-12P1V8CN2J Features

* Meets VRM9.1 specification

* Microprocessor voltage identification input

* 5 Bit VID input

* 1.10 Vdc to 1.85 Vdc in 25 mV steps

* Up to 50 A/μs load transient

* Democratic current sharing, no need for master/slave configuration

* Remote sense

NXI150-12P1V8CN2J Datasheet (247.27 KB)

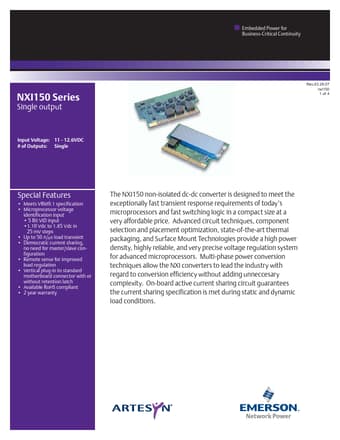

Preview of NXI150-12P1V8CN2J PDF

Datasheet Details

Part number:

NXI150-12P1V8CN2J

Manufacturer:

Emerson

File Size:

247.27 KB

Description:

Dc-dc / non-isolated vrm processor.
Embedded Power for Business-Critical Continuity NXI150 Series Single output Rev.03.28.07 nxi150 1 of 4 Input Voltage: 11 - 12.6VDC # of Outputs: Si.
