VS1 - AC-DC / Configurable

This page provides the datasheet information for the VS1, a member of the VS1_vs_1192227014 AC-DC / Configurable family.

Datasheet Summary

Features

  • Power factor correction.
  • IEC 555-2 harmonic distortion compliance.
  • CISPR 22, EN55022 Level B conducted / radiated EMI.
  • EN61000 immunity standards.
  • European CE Mark.
  • Current share on all outputs.
  • Remote sense on all outputs.
  • Overload protection on all outputs.
  • Voltage adjustment on all outputs.
  • Margining on all outputs.
  • AC-OK-signal (logics “1” or “0”).
  • Global DC OK (logics “1” or “0”).

📥 Download Datasheet

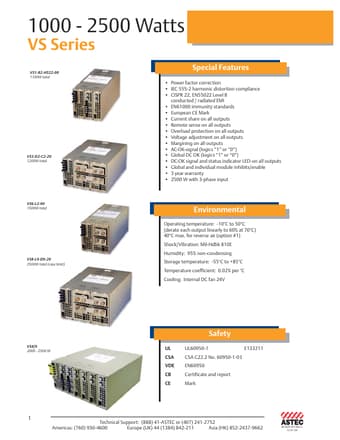

Datasheet preview – VS1

Datasheet Details

Part number VS1
Manufacturer Emerson
File Size 346.94 KB
Description AC-DC / Configurable
Datasheet download datasheet VS1 Datasheet
Additional preview pages of the VS1 datasheet.

📁 Similar Datasheet

  • VS1 - Micro Vibration Sensor (Sensolute)
  • VS100 - HDBaseT Transmitter / Receiver (Valens)
  • VS1000 - Audio Module (VLSI)
  • VS1000 - Ogg Vorbis Player (VLSI)
  • VS1000 - Single axis analog accelerometer (SAFRAN)
  • VS1001k - MPEG AUDIO CODEC (VLSI)
  • VS1002d - MP3 AUDIO CODEC (VLSI)
  • VS1003 - MP3/WMA AUDIO CODEC (VLSI)
  • VS1003B - 16/32-Button Player (VLSI)
  • VS1005g - Audio Processing Platform IC (VLSI)
Other Datasheets by Emerson

    Full PDF Text Transcription

    Click to expand full text
    1000 - 2500 Watts VS Series VS1-B2-H522-00 1100W total Special Features • Power factor correction • IEC 555-2 harmonic distortion compliance • CISPR 22, EN55022 Level B conducted / radiated EMI • EN61000 immunity standards • European CE Mark • Current share on all outputs • Remote sense on all outputs • Overload protection on all outputs • Voltage adjustment on all outputs • Margining on all outputs • AC-OK-signal (logics “1” or “0”) • Global DC OK (logics “1” or “0”) • DC-OK signal and status indicator LED-on all outputs • Global and individual module inhibits/enable • 3 year warranty • 2500 W with 3-phase input VS3-D2-C2-20 1200W total VS6-L2-00 1500W total Environmental Operating temperature: -10°C to 50°C (derate each output linearly to 60% at 70°C) 40°C max.
