VS1001k - MPEG AUDIO CODEC

Datasheet Summary

Description

VS1001k is a single-chip solution for an MPEG layer 3 audio decoder.

Features

  • MPEG audio layer 3 decoder (ISO11172-3).
  • Supports MPEG 1 & 2, and 2.5 extensions, all their sample rates and bit rates, in mono and stereo.
  • Supports PCM input.
  • Supports VBR (variable bitrate).
  • Can be used as a slave co-processor.
  • Operates with single clock 12..13 MHz or 24..26 MHz.
  • Low-power operation.
  • On-chip high-quality stereo DAC with no phase error between channels.
  • Internal Op-Amp in BGA-49 and LQFP-48 packag.

📥 Download Datasheet

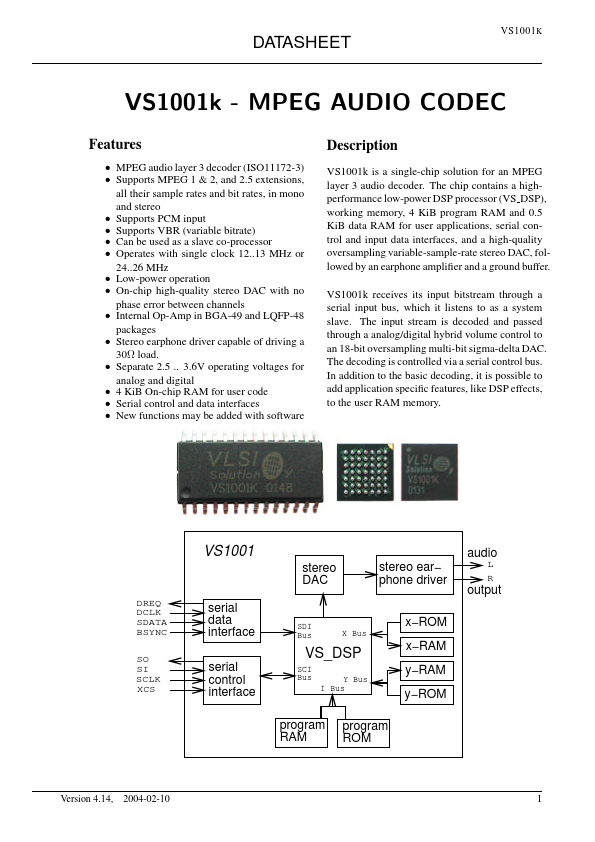

Datasheet preview – VS1001k

Datasheet Details

Part number VS1001k
Manufacturer VLSI
File Size 444.43 KB
Description MPEG AUDIO CODEC
Datasheet download datasheet VS1001k Datasheet

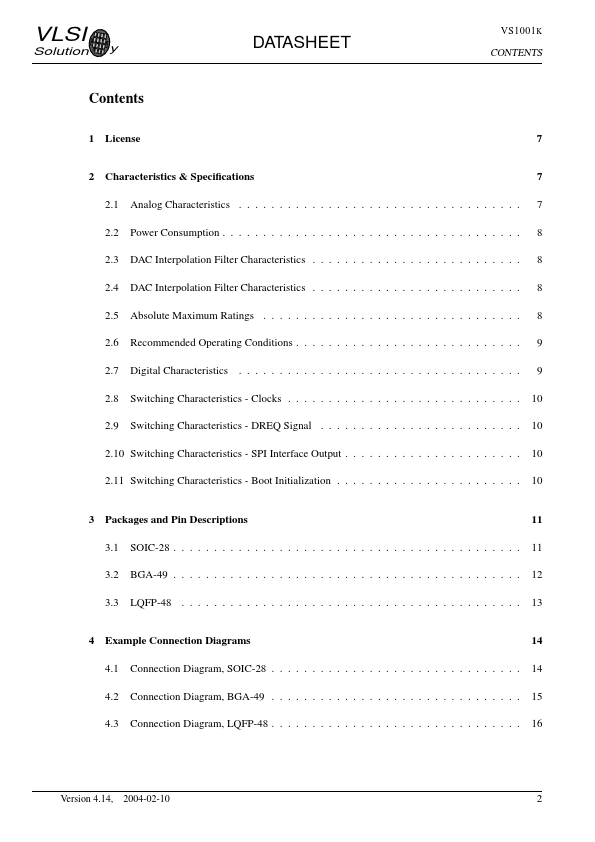

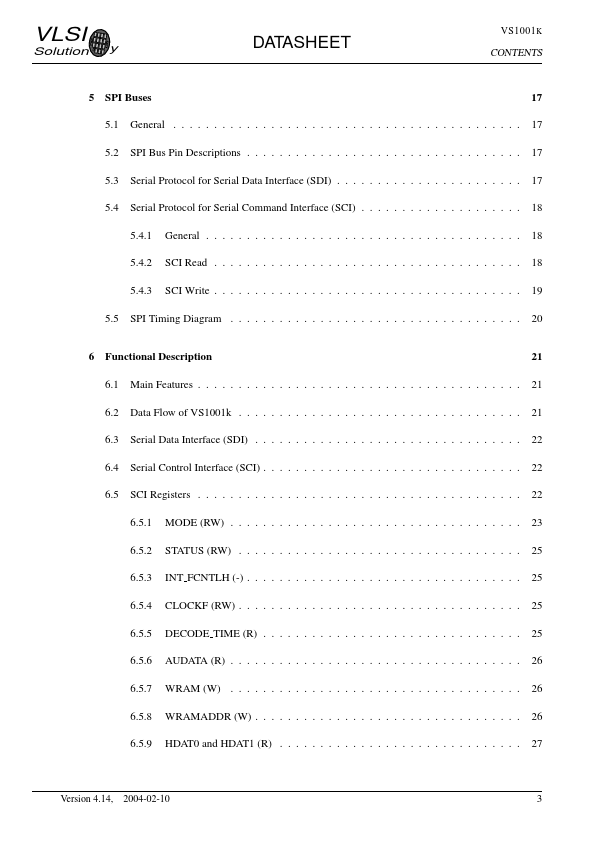

Additional preview pages of the VS1001k datasheet.

📁 Similar Datasheet

  • VS100 - HDBaseT Transmitter / Receiver (Valens)
  • VS1000 - Single axis analog accelerometer (SAFRAN)
  • VS100RX - HDBaseT Transmitter / Receiver (Valens)
  • VS100TX - HDBaseT Transmitter / Receiver (Valens)
  • VS1 - AC-DC / Configurable (Emerson)
  • VS1 - Micro Vibration Sensor (Sensolute)
  • VS11VUA1LAM - Transient Voltage Suppressor (ROHM)
  • VS12HBE - SCR (HAOHAI)
  • VS12MBE - SCR (HAOHAI)
  • VS12SBE - SCR (HAOHAI)
Other Datasheets by VLSI

Full PDF Text Transcription

Click to expand full text
DATASHEET VS1001K VS1001k - MPEG AUDIO CODEC Features • MPEG audio layer 3 decoder (ISO11172-3) • Supports MPEG 1 & 2, and 2.5 extensions, all their sample rates and bit rates, in mono and stereo • Supports PCM input • Supports VBR (variable bitrate) • Can be used as a slave co-processor • Operates with single clock 12..13 MHz or 24..26 MHz • Low-power operation • On-chip high-quality stereo DAC with no phase error between channels • Internal Op-Amp in BGA-49 and LQFP-48 packages • Stereo earphone driver capable of driving a 30Ω load. • Separate 2.5 .. 3.
