A544 - Miniature Alkaline

Energizer

Datasheet Details

Part number	A544
Manufacturer	Energizer
File Size	68.82 KB
Description	Miniature Alkaline
Datasheet	A544 Datasheet
Additional preview pages of the A544 datasheet.

📁 Similar Datasheet

A54 - 5 TO 500 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
A540 - SILICON RECTIFIER (Powerex Power Semiconductors)
A540L - SILICON RECTIFIER (Powerex Power Semiconductors)
A540LA - SILICON RECTIFIER (Powerex Power Semiconductors)
A540LB - SILICON RECTIFIER (Powerex Power Semiconductors)
A540LC - SILICON RECTIFIER (Powerex Power Semiconductors)
A540LD - SILICON RECTIFIER (Powerex Power Semiconductors)
A54SX08 - SX Family FPGAs (Actel)
A54SX16 - SX Family FPGAs (Actel)
A54SX16P - SX Family FPGAs (Actel)

Other Datasheets by Energizer

Full PDF Text Transcription

Click to expand full text

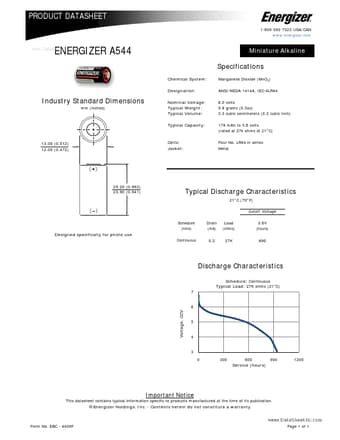

PRODUCT DATASHEET 1-800-383-7323 USA/CAN www.energizer.com www.DataSheet4U.com ENERGIZER A544 Chemical System: Designation: Miniature Alkaline Specifications Manganese Dioxide (MnO2) ANSI/NEDA-1414A, IEC-4LR44 6.0 volts 9.8 grams (0.3oz) 3.3 cubic centimeters (0.2 cubic inch) 178 mAh to 3.6 volts (rated at 27k ohms at 21°C) Four No. LR44 in series Metal Industry Standard Dimensions mm (inches) Nominal Voltage: Typical Weight: Typical Volume: Typical Capacity: 13.00 (0.512) 12.00 (0.472) Cells: Jacket: 25.20 (0.992) 23.90 (0.941) Typical Discharge Characteristics 21°C (70°F) Cutoff Voltage Schedule (time) Drain (mA) Load (ohms) 3.6V (hours) Designed specifically for photo use Continuous 0.
