EN25Q16

16 Megabit Serial Flash Memory

EN25Q16 Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt

* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3

* 16 Mbit Serial Flash - 16 M-bit/2048 K-byte/8192 pages - 256 bytes per programmable page

* Standard, Dual or Quad SPI Sta

EN25Q16 General Description

The EN25Q16 is a 16-Megabit (2048K-byte) Serial Flash memory, with advanced write protection mechanisms. The EN25Q16 supports the standard Serial Peripheral Interface (SPI), and a high performance Dual/Quad output as well as Dual/Quad I/O using SPI pins: Serial Clock, Chip Select, Serial DQ0(DI), DQ.

EN25Q16 Datasheet (805.52 KB)

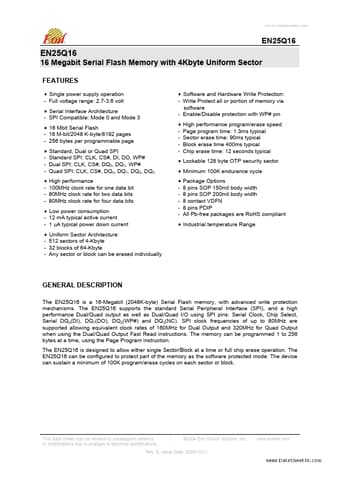

Preview of EN25Q16 PDF

Datasheet Details

Part number:

EN25Q16

Manufacturer:

Eon Silicon Solution

File Size:

805.52 KB

Description:

16 megabit serial flash memory.
