EN25Q40B, EN25Q40B-2X - 4 Megabit Serial Flash Memory

EN25Q40B Description

EN25Q40B (2X) EN25Q40B (2X) 4 Megabit Serial Flash Memory with 4Kbyte Uniform Sector .
The device is a 4 Megabit (512 K-byte) Serial Flash memory, with enhanced write protection mechanisms.

EN25Q40B Features

* Single power supply operation - Full voltage range: 2.3-3.6 volt
* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3
* 4 M-bit Serial Flash - 4 M-bit/512 K-byte/2,048 pages - 256 bytes per programmable page
* Standard, Dual or Quad SPI - Standard SPI: CLK, CS#, DI,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EN25Q40B, EN25Q40B-2X. Please refer to the document for exact specifications by model.

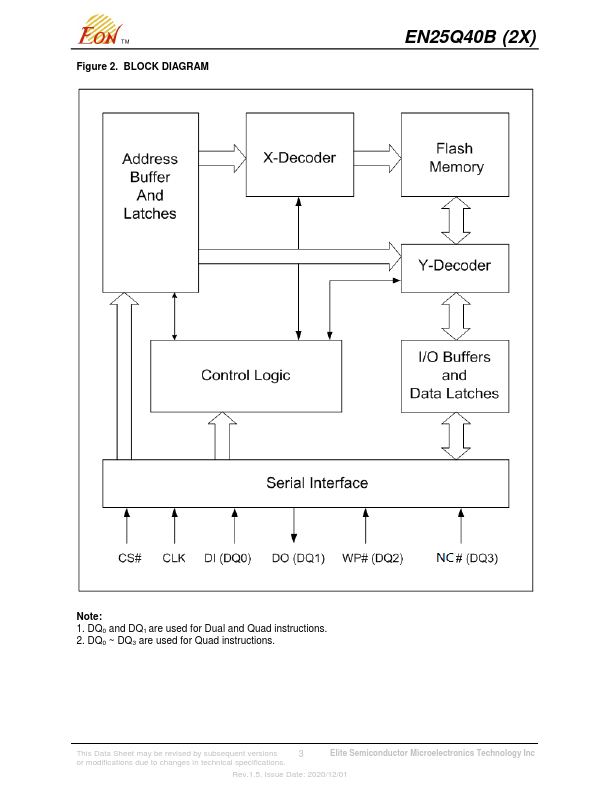

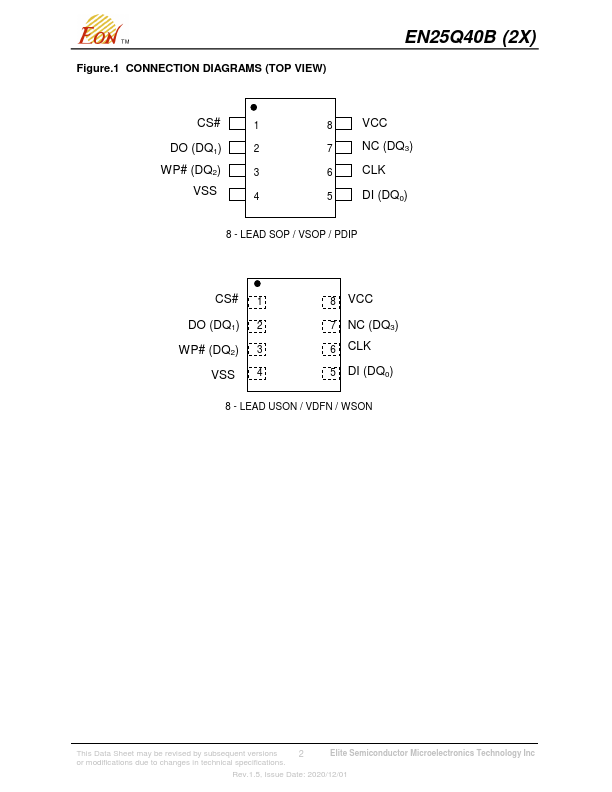

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EN25Q40B, EN25Q40B-2X
Manufacturer
Eon
File Size
2.35 MB
Datasheet
EN25Q40B-2X-Eon.pdf
Description
4 Megabit Serial Flash Memory
Note
This datasheet PDF includes multiple part numbers: EN25Q40B, EN25Q40B-2X.
Please refer to the document for exact specifications by model.
