4 Megabit Serial Flash Memory

EN25Q40 Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt

* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3

* 4 M-bit Serial Flash - 4 M-bit/512 K-byte/2048 pages - 256 bytes per programmable page

* Standard, Dual or Quad SPI Stand

EN25Q40 General Description

The EN25Q40 is a 4 Megabit (512K-byte) Serial Flash memory, with advanced write protection mechanisms. The EN25Q40 supports the standard Serial Peripheral Interface (SPI), and a high performance Dual output as well as Quad I/O using SPI pins: Serial Clock, Chip Select, Serial DQ0(DI), DQ1(DO), DQ2(W.

EN25Q40 Datasheet (0.98 MB)

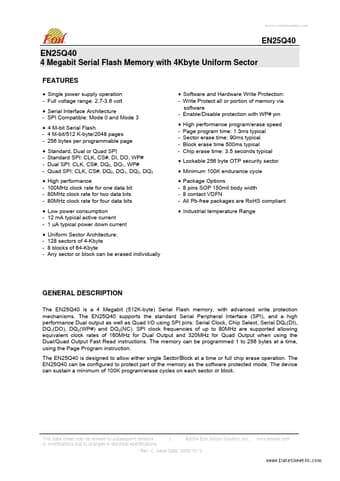

EN25Q40 Datasheet Preview — Preview of EN25Q40 PDF

Datasheet Details

Part number:

EN25Q40

Manufacturer:

Eon Silicon Solution

File Size:

0.98 MB

Description:

4 megabit serial flash memory.
