EM484M1644VTC Datasheet - Eorex

EM484M1644VTC - 64Mb (1M x 4Bank x 16) Synchronous DRAM

The EM484M1644VTC is Synchronous Dynamic Random Access Memory (SDRAM) organized as 1Meg words x 4 banks by 16 bits.

All inputs and outputs are synchronized with the positive edge of the clock.

The 64Mb SDRAM uses synchronized pipelined architecture to achieve high speed data transfer rates and is de

EM484M1644VTC Features

* Fully Synchronous to Positive Clock Edge

* Single 3.3V ±0.3V Power Supply

* LVTTL Compatible with Multiplexed Address

* Programmable Burst Length (B/L) - 1, 2, 4, 8 or Full Page

* Programmable CAS Latency (C/L) - 2 or 3

* Data Mask (DQM) for Read / W

EM484M1644VTC-Eorex.pdf

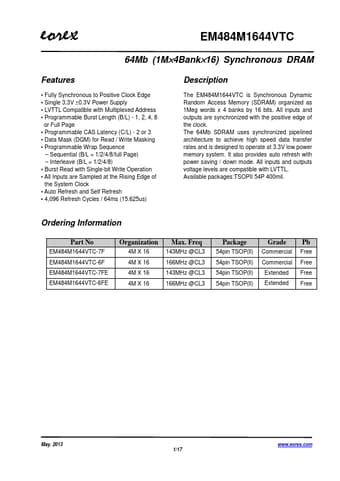

Preview of EM484M1644VTC PDF
EM484M1644VTC Datasheet Preview Page 2 EM484M1644VTC Datasheet Preview Page 3

Datasheet Details

Part number:

EM484M1644VTC

Manufacturer:

Eorex

File Size:

191.10 KB

Description:

64mb (1m x 4bank x 16) synchronous dram.
