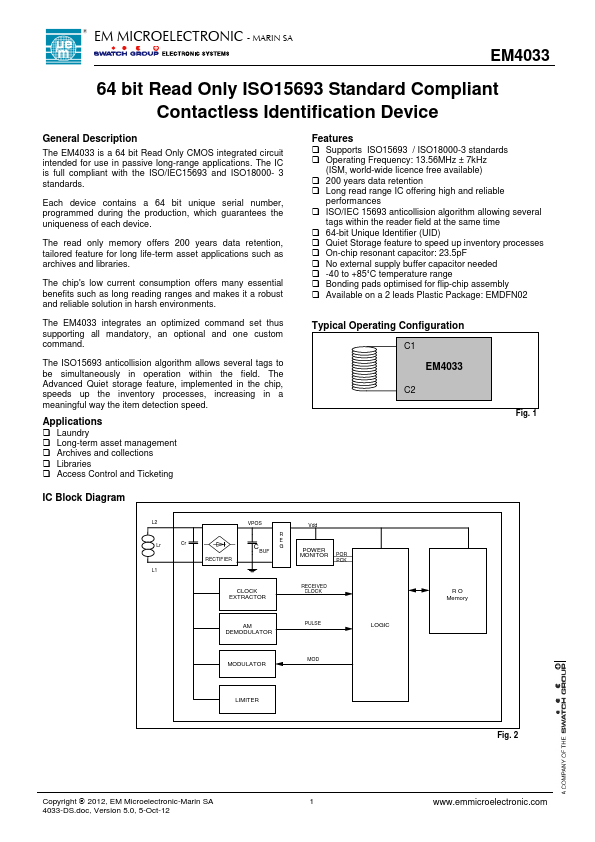

EM4033 - 64-bit Read Only CMOS

EM Microelectronic

Datasheet Details

The EM4033 is a 64 bit Read Only CMOS integrated circuit intended for use in passive long-range applications.

 Supports ISO15693 / ISO18000-3 standards  Operating Frequency: 13.56MHz ± 7kHz (ISM, world-wide licence free available)  200 years data retention  Long read range IC offering high and reliable performances  ISO/IEC 15693 anticollision algorithm allowing several tags within the reader field at the same time  64-bit Unique Identifier (UID)  Quiet Storage feature to speed up inventory processes  On-chip resonant capacitor: 23.5pF  No external supply buffer capacitor needed  -40 to +85˚C.
