EM4102 - Read Only Contactless Identification

Description

The EM4102 (previously named H4102) is a CMOS integrated circuit for use in electronic Read Only RF Transponders.

The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals.

Features

  • 64 bit memory array laser programmable.
  • Several options of data rate and coding available.
  • On chip resonance capacitor.
  • On chip supply buffer capacitor.
  • On chip voltage limiter.
  • Full wave rectifier on chip.
  • Large modulation depth due to a low impedance modulation device.
  • Operating frequency 100 - 150 kHz.
  • Very small chip size convenient for implantation.
  • Very low power consumption.

📥 Download Datasheet

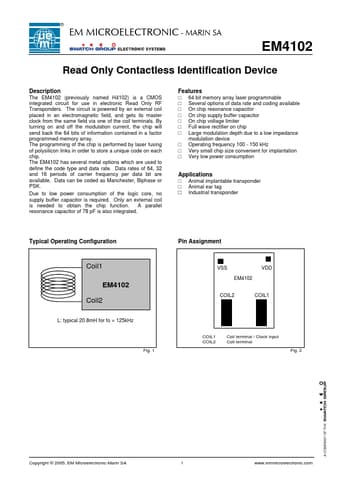

Datasheet preview – EM4102

Datasheet Details

Part number EM4102
Manufacturer EM MICROELECTRONIC
File Size 129.73 KB
Description Read Only Contactless Identification
Datasheet download datasheet EM4102 Datasheet
Additional preview pages of the EM4102 datasheet.

📁 Similar Datasheet

  • EM4125 - Read Only Contactless Identification (EM Microelectronic - MARIN SA)
  • EM4 - Electronic Indicator (ETC)
  • EM4 - Tube (ETC)
  • EM4 - Tuning Indicator (Philips)
  • EM4022 - Multi Frequency Contactless Identification Device Anti-Collision compatible (EM Microelectronic - MARIN SA)
  • EM4025 - Read Only Contactless Identification Device with Anticollision (EM Microelectronic - MARIN SA)
  • EM4026 - Read only Contactless Identification Device (EM Microelectronic - MARIN SA)
  • EM4034 - 13.56MHz ISO15693 Standard Compliant Contactless RW Identification Device (EM Microelectronic - MARIN SA)
  • EM4035 - 13.56MHz CRYPTO ISO15693 Compliant Contactless Identification Device (EM Microelectronic - MARIN SA)
  • EM428M1644RTA - Double DATA RATE SDRAM (Eorex)
Other Datasheets by EM MICROELECTRONIC
  • EM4100 - Read Only Contactless Identification Device
  • EM4123 - Read-only UHF RFID IC
  • EM4126 - RFID
  • EM4133 - Contactless RW Identification
  • EM4169 - 128-bit Read/Write Contactless Identification
  • EM4033 - 64-bit Read Only CMOS
  • EM4069 - 128-bit Read/Write Contactless Identification
  • EM4094 - Analog Front-End

Full PDF Text Transcription

Click to expand full text
R EM MICROELECTRONIC - MARIN SA EM4102 Read Only Contactless Identification Device Description The EM4102 (previously named H4102) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor programmed memory array. The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip. The EM4102 has several metal options which are used to define the code type and data rate.
