EM4126 - CLASS-1 GENERATION-2 (GEN2) RFID

General Description

EM4126 is a UHF RFID IC compliant with both ISO/IEC 18000-63 (formerly known as 18000-6 Type C) and EPCTM Class-1 Generation-2.

The EM4126 has 224 bits of non-volatile memory (16 bit PC Word and 208 bit UII/EPC Code) enabling the support of ISO or EPC data structures.

Key Features

  • Ɩ ISO/IEC 18000-63 compliant Ɩ EPCTM Class-1 Generation-2 compliant Ɩ 208-bit UII / EPC encodings are supported Ɩ 32-bit Short Tag Identification (TID) Ɩ -19 dBm (-21 dBm) typical IC (tag) read sensitivity Ɩ Forward link data rates: 40 to 160 kbit/s Ɩ Return link data rates: 40 to 640 kbit/s Ɩ Support of near-field mode enabling reading e. g. through water Ɩ Support of parallel-inductance matching for improved matching Ɩ Extended temperature range: -40C to +85C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM4 Electronic Indicator ETC
EM4 Tube ETC
EM4 Tuning Indicator Philips
EM4022 Multi Frequency Contactless Identification Device Anti-Collision compatible EM Microelectronic - MARIN SA
EM4026 Read only Contactless Identification Device EM Microelectronic - MARIN SA

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
EM4123 Read-only UHF RFID IC
EM4124 ISO 18000-6C RFID IC
EM4100 Read Only Contactless Identification Device
EM4102 Read Only Contactless Identification
EM4133 Contactless RW Identification

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

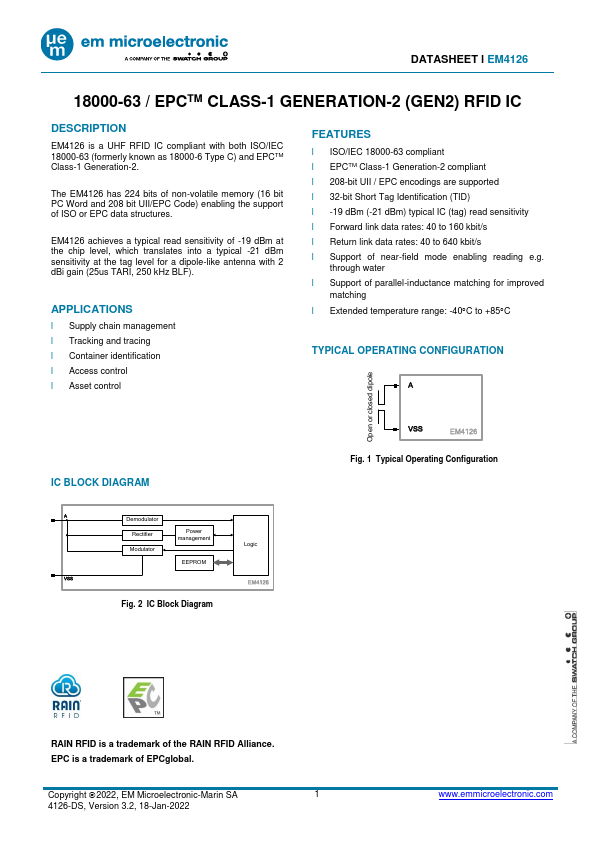

DATASHEET Ɩ EM4126 18000-63 / EPCTM CLASS-1 GENERATION-2 (GEN2) RFID IC DESCRIPTION EM4126 is a UHF RFID IC compliant with both ISO/IEC 18000-63 (formerly known as 18000-6 Type C) and EPCTM Class-1 Generation-2. The EM4126 has 224 bits of non-volatile memory (16 bit PC Word and 208 bit UII/EPC Code) enabling the support of ISO or EPC data structures. EM4126 achieves a typical read sensitivity of -19 dBm at the chip level, which translates into a typical -21 dBm sensitivity at the tag level for a dipole-like antenna with 2 dBi gain (25us TARI, 250 kHz BLF).
