EM Microelectronic EM4124

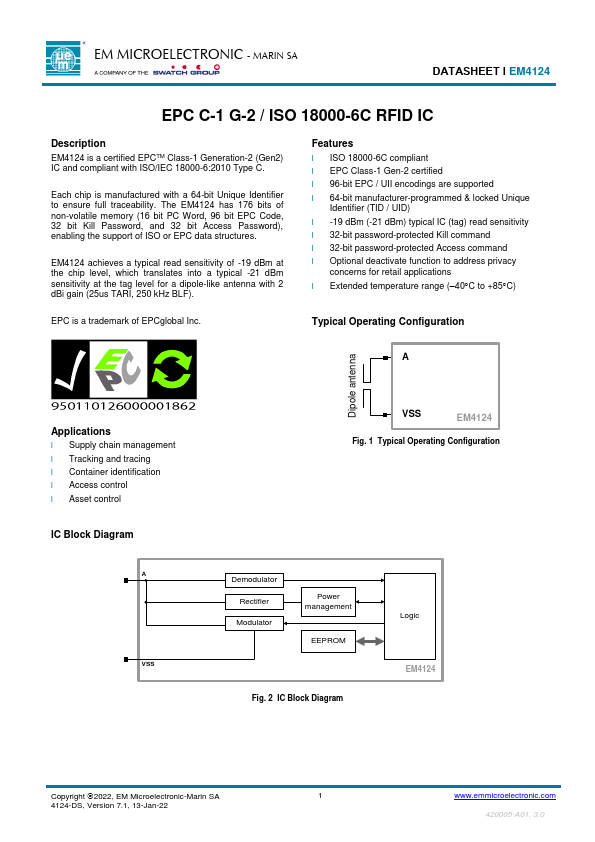

EM4124 is a certified EPCTM Class-1 Generation-2 (Gen2) IC and compliant with ISO/IEC 18000-6:2010 Type C. Each chip is manufactured with a 64-bit Unique Identifier to ensure full traceability. The EM4124 has 176 bits of non-volatile memory (16 bit PC Word, 96 bit EPC Code, 32 bit Kill Password, and 32 bit Access Password), enabling the support of ISO or EPC data structures.

Part No.	EM4124
Datasheet	EM4124 Download
Manufacturer	EM Microelectronic
Description	ISO 18000-6C RFID IC
Buy	Stock & Price

DESCRIPTION

EM4124 achieves a typical read sensitivity of -19 dBm at the chip level, which translates into a typical -21 dBm sensitivity at the tag level for a dipole-like antenna with 2 dBi gain (25us TARI, 250 kHz BLF).

FEATURES

Ɩ ISO 18000-6C compliant Ɩ EPC Class-1 Gen-2 certified Ɩ 96-bit EPC / UII encodings are supported Ɩ 64-bit manufacturer-programmed & locked Unique Identifier (TID / UID) Ɩ -19 dBm (-21 dBm) typical IC (tag) read sensitivity Ɩ 32-bit password-protected Kill command Ɩ 32-bit password-protected Access command Ɩ Optional deactivate function to address privacy concerns for retail applications Ɩ Extended temperature range (–40C to +85C) EPC is a trademark of EPCglobal Inc. Typical Operating Configuration A Dipole antenna

APPLICATIONS

Ɩ Supply chain management Ɩ Tracking and tracing Ɩ Container identification Ɩ Access control Ɩ Asset control IC Block Diagram A VSS VSS EM4124 Fig. 1 Typical Operating Configuration Demodulator Rectifier Modulator Power management EEPROM Fig.
