PBL3726-18A - Universal Speech Circuit

PBL3726-18A Description

March 1996 PBL 3726/18A Universal Speech Circuit .
PBL 3726/18A is a standard version of the PBL 3726 family of the mask-programmable, monolithic integrated speech circuits for use in electronic teleph.

PBL3726-18A Features

* Minimum number of inexpensive external components, 7 capacitors and 11 resistors.
* Mute function for operation with DTMF-generator.
* Transmit and receive gain regulation for automatic loop loss compensation.
* Extended current and voltage range 5 - 130 mA, down to

PBL3726-18A Applications

* information. 3. External resistor in the test set up. 3 http://www. Datasheet4U. com/ PBL 3726/18A +L 1 TO 2 TI 3 +C 4 Mute 5 GR 6 DCS 7 DCO 8 DCC 9 18 17 16 15 14 13 12 11 10 RE 2 +L 1 20 19 18 17 16 15 14 13 12 11 RE 2 RE 1 DR RI -L MI 2 MI 1 MO DI NC RE 1 DR RI -L MI 2 MI 1 MO DI TO 2 TI 3

📥 Download Datasheet

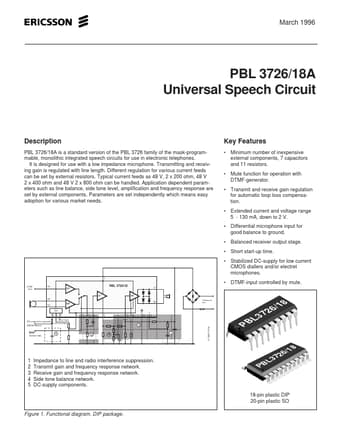

Preview of PBL3726-18A PDF
