Description

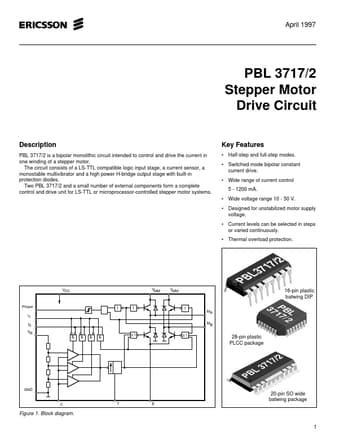

PBL 3717/2 is a bipolar monolithic circuit intended to control and drive the current in one winding of a stepper motor.

Features

Half-step and full-step modes.
Switched mode bipolar constant current drive.
Wide range of current control 5 - 1200 mA.
Wide voltage range 10 - 50 V.
Designed for unstabilized motor supply voltage.
Current levels can be selected in steps or varied continuously.
Thermal overload protection. VCC Schmitt Trigger Phase I1 I0 VR & & & & ≥1 Time Delay VMM VMM PB L3 16-pin plastic batwing DIP 1 1 1 MA MB ≥1 28-pin plastic PLC.
