PBL3717A

STEPPER MOTOR DRIVER

PBL3717A General Description

The PBL3717Ais a monolithic IC which controls and drives one phase of a bipolar stepper motor with chopper control of the phase current. Current levels may be selected in threesteps by means of two logic inputs which select one of three current comparators. When both of these inputs are high the dev.

PBL3717A Datasheet (187.85 KB)

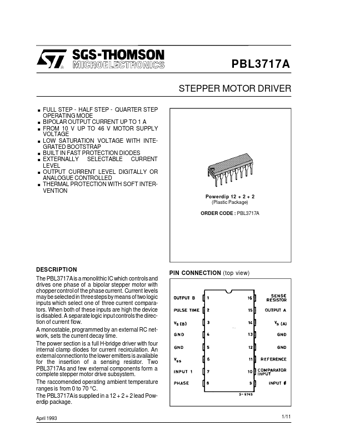

Preview of PBL3717A PDF

Datasheet Details

Part number:

PBL3717A

Manufacturer:

STMicroelectronics ↗

File Size:

187.85 KB

Description:

Stepper motor driver.
PBL3717A STEPPER MOTOR DRIVER . . . . . . . . FULL STEP - HALF STEP - QUARTER STEP OPERATING MODE BIPOLAR OUTPUT CURRENT UP TO 1 A FROM 10 V UP TO 4.
