PBL38620-2 - Subscriber Line Interface Circuit

Datasheet Summary

Description

The PBL 386 20/2 Subscriber Line Interface Circuit (SLIC) is a 90 V bipolar integrated circuit for use in PBX,Terminal adapters and other telecommunications equipment.

The PBL 386 20/2 has been optimized for low total line interface cost and a high degree of flexibility in different applications.

Features

  • 24-pin SSOP package.
  • High and low battery with automatic switching.
  • 60 mW on-hook power dissipation in active state.
  • On-hook transmission.
  • Long loop battery feed tracks Vbat for maximum line voltage.
  • Only +5 V feed in addition to battery.
  • Selectable transmit gain (1x or 0.5x).
  • No power-up sequence.
  • 44V open loop voltage @ -48V battery feed.
  • Full longitudinal current capability during on-hook state.

📥 Download Datasheet

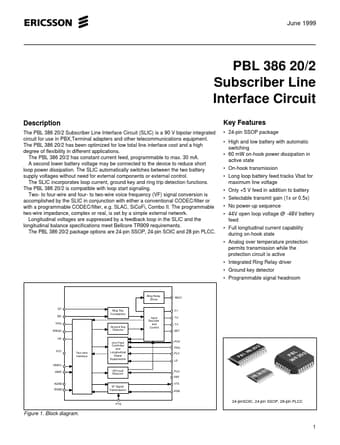

Datasheet preview – PBL38620-2

Datasheet Details

Part number PBL38620-2
Manufacturer Ericsson
File Size 135.91 KB
Description Subscriber Line Interface Circuit
Datasheet download datasheet PBL38620-2 Datasheet
Additional preview pages of the PBL38620-2 datasheet.

📁 Similar Datasheet

  • PBL301 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL302 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL303 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL304 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL305 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL306 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL307 - 3 Amps Silicon Bridge Rectifiers (LITEON)
  • PBL3717 - Stepper Motor Drive Circuit (Ericsson Components)
  • PBL3717A - STEPPER MOTOR DRIVER (STMicroelectronics)
  • PBL3726 - MASK - PROGRAMMABLE SPEECH CIRCUITS (STMicroelectronics)
Other Datasheets by Ericsson

Full PDF Text Transcription

Click to expand full text
June 1999 PBL 386 20/2 Subscriber Line Interface Circuit Description The PBL 386 20/2 Subscriber Line Interface Circuit (SLIC) is a 90 V bipolar integrated circuit for use in PBX,Terminal adapters and other telecommunications equipment. The PBL 386 20/2 has been optimized for low total line interface cost and a high degree of flexibility in different applications. The PBL 386 20/2 has constant current feed, programmable to max. 30 mA. A second lower battery voltage may be connected to the device to reduce short loop power dissipation. The SLIC automatically switches between the two battery supply voltages without need for external components or external control. The SLIC incorporates loop current, ground key and ring trip detection functions.
