* ‧Glass passivated chip ‧Low leakage ‧Built-in strain relief ‧Low inductance ‧High peak reverse power dissipation ‧Lead (Pb)-free component ‧For use in stabilizing and clipping circuits with high power rating 2W Zener Diode Ordering Information Part Number Remark 2EZxxxD5 General 2EZxxxD5-H H
2EZ270D5 Datasheet (164.79 KB)
2EZ270D5
Eris
164.79 KB
2w zener diodes.

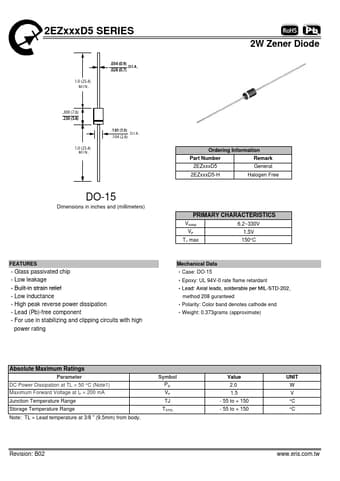

2EZxxxD5 SERIES
1.0 (25.4) MIN.
.034 (0.9) DIA.
.028 (0.7)
.300 (7.6) .230 (5.8)
1.0 (25.4) MIN.
.140 (3.6) .104 (2.6) D I A .
DO-15
Dimensions i.
