5KP120A, 5KP5.0A Datasheet - Eris

5KP120A Transient Voltage Suppressors

5KP120A Features

* ‧Constructed with Glass Passivated Die ‧5000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases:R6 ‧Case Material: Molded Plastic. UL Flammability Classification Rating

5KP5.0A-Eris.pdf

This datasheet PDF includes multiple part numbers: 5KP120A, 5KP5.0A. Please refer to the document for exact specifications by model.

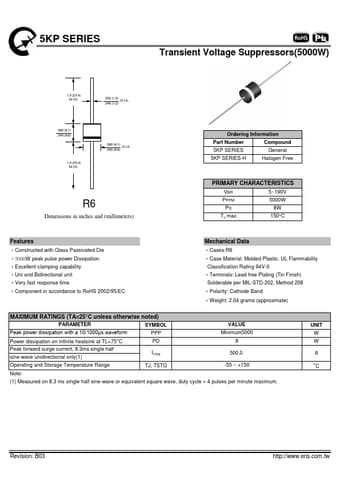

5KP120A Datasheet Preview Page 2 5KP120A Datasheet Preview Page 3

Datasheet Details

Part number:

5KP120A, 5KP5.0A

Manufacturer:

Eris

File Size:

345.17 KB

Description:

Transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: 5KP120A, 5KP5.0A.
Please refer to the document for exact specifications by model.
