EBRP3X45AF - Excellent Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

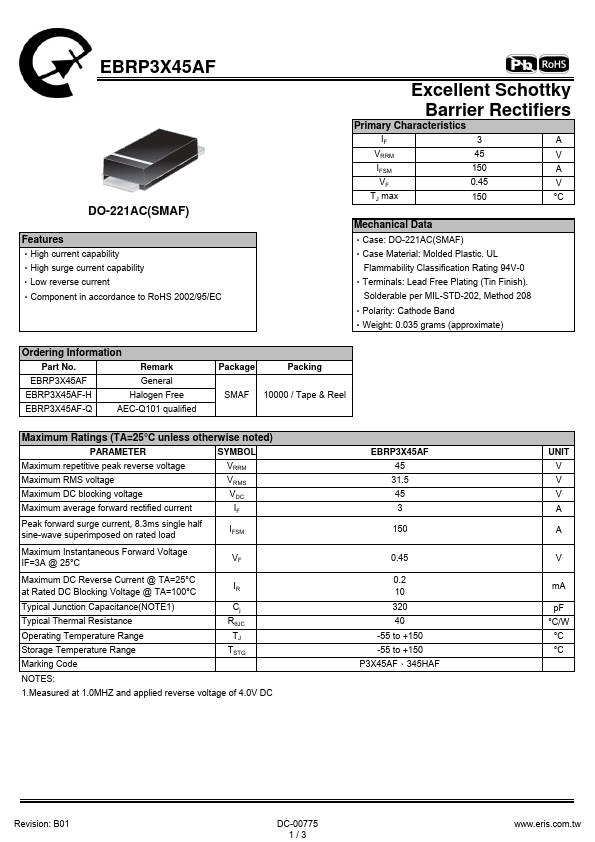

EBRP3X45AF Datasheet Preview — Preview of EBRP3X45AF PDF

datasheet Preview Page 2

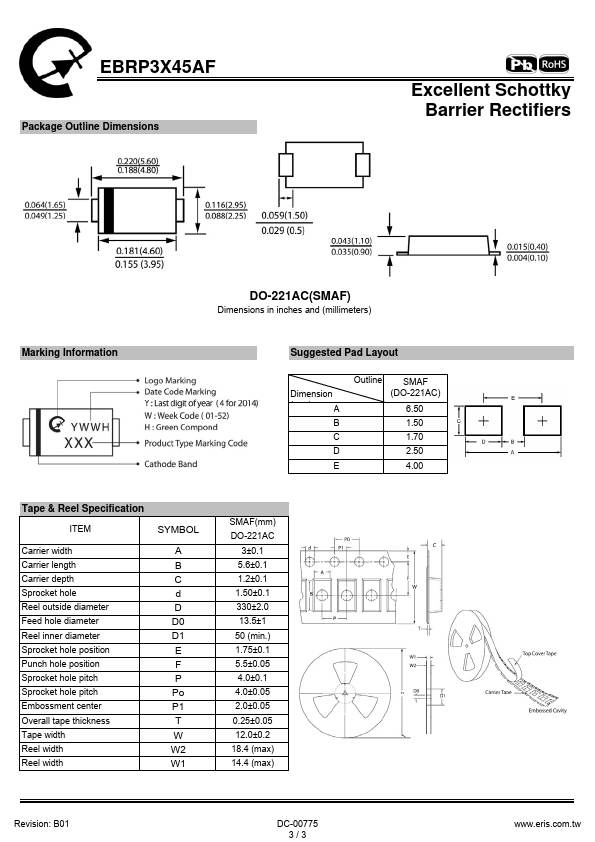

datasheet Preview Page 3

Datasheet Details

Part number	EBRP3X45AF
Manufacturer	Eris
File Size	331.96 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRP3X45AF-Eris.pdf

EBRP3X45AF Product details

Features

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Excellent Schottky Barrier Rectifiers Primary Characteristics IF 3 A VRRM 45 V IFSM 150 A VF 0.45 V TJ max 150 °C Mechanical Data ‧Case: DO-221AC(SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.035 grams (app.
