EBRT15L80D - Excellent Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

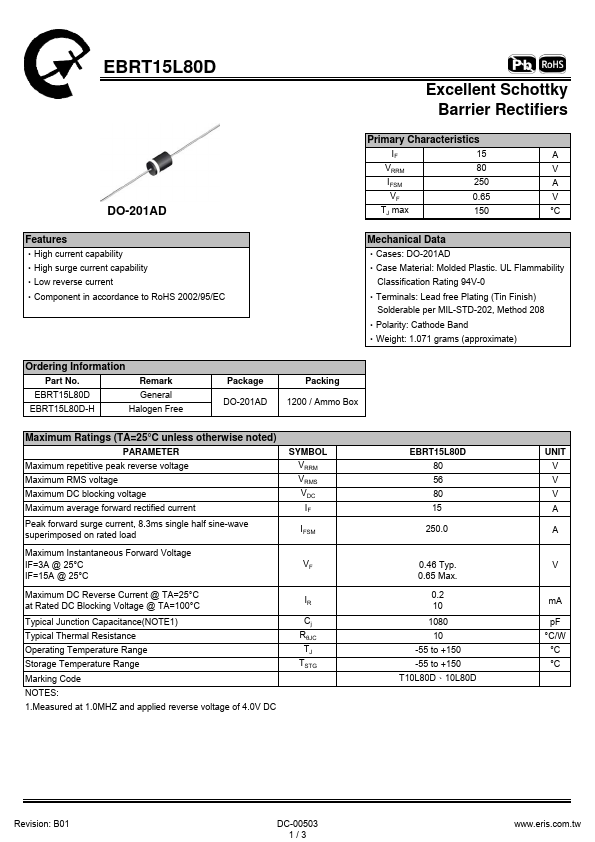

EBRT15L80D Datasheet Preview — Preview of EBRT15L80D PDF

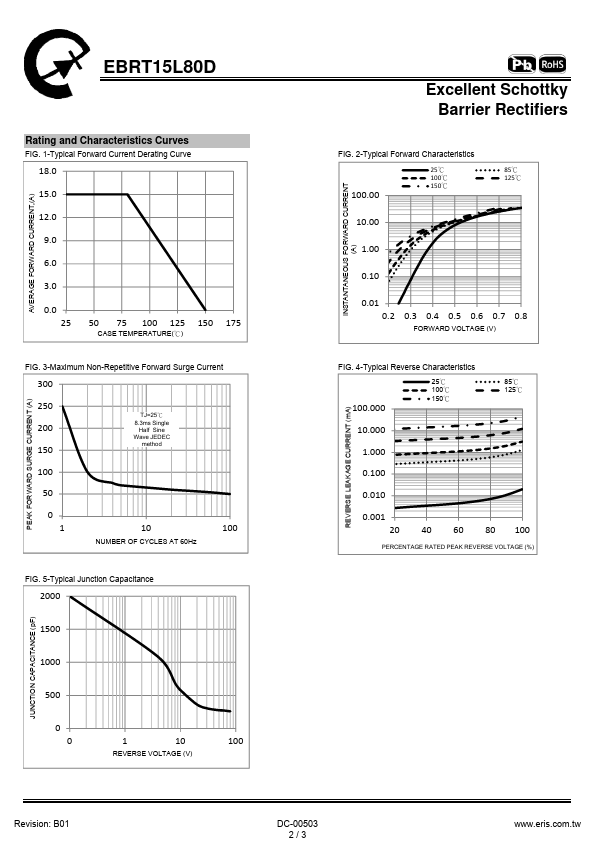

datasheet Preview Page 2

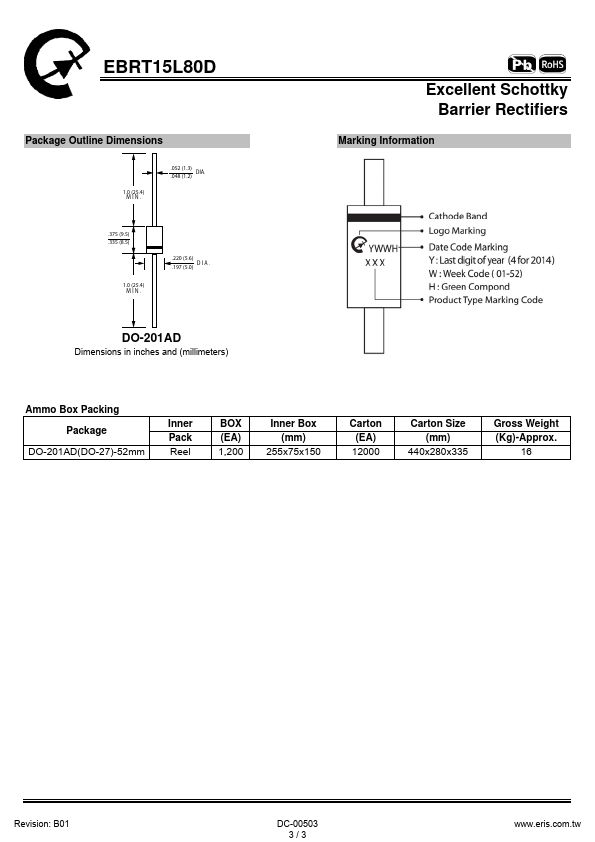

datasheet Preview Page 3

Datasheet Details

Part number	EBRT15L80D
Manufacturer	Eris
File Size	216.53 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT15L80D-Eris.pdf

EBRT15L80D Product details

Features

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 15 A VRRM 80 V IFSM 250 A VF 0.65 V TJ max 150 °C Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.071 grams (approximate) Ordering Information Part No. Re.
