EBRT5E200C Excellent Schottky Barrier Rectifiers

Eris

Description

EBRT5E200C Excellent Schottky Barrier Rectifiers DO-214AB(SMC) Primary Characteristics IF 5 A VRRM 200 V IFSM 80 A VF 0.82 V TJ max 1.

📥 Download Datasheet

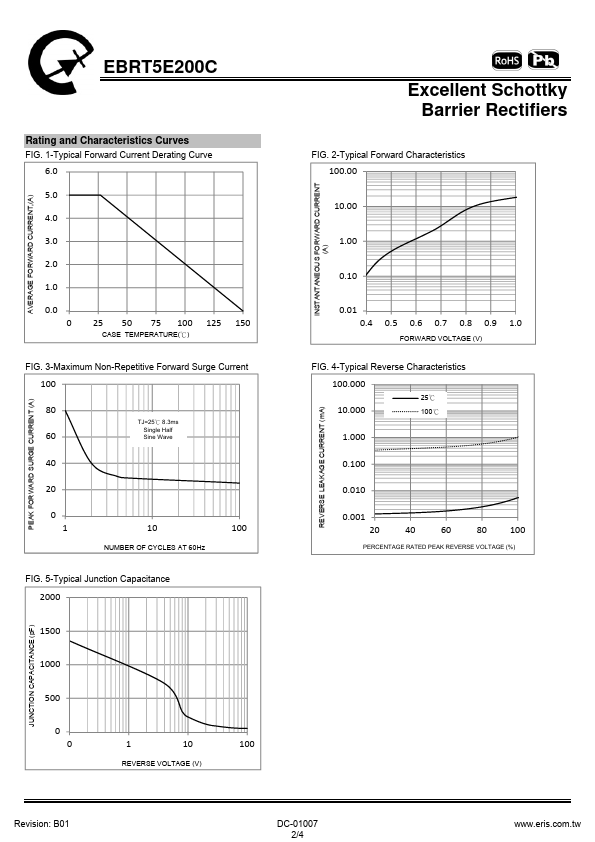

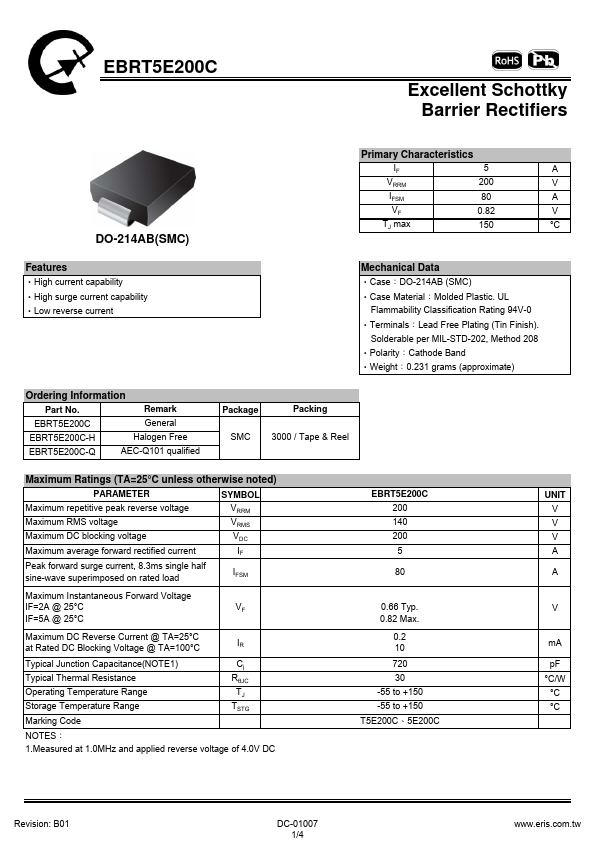

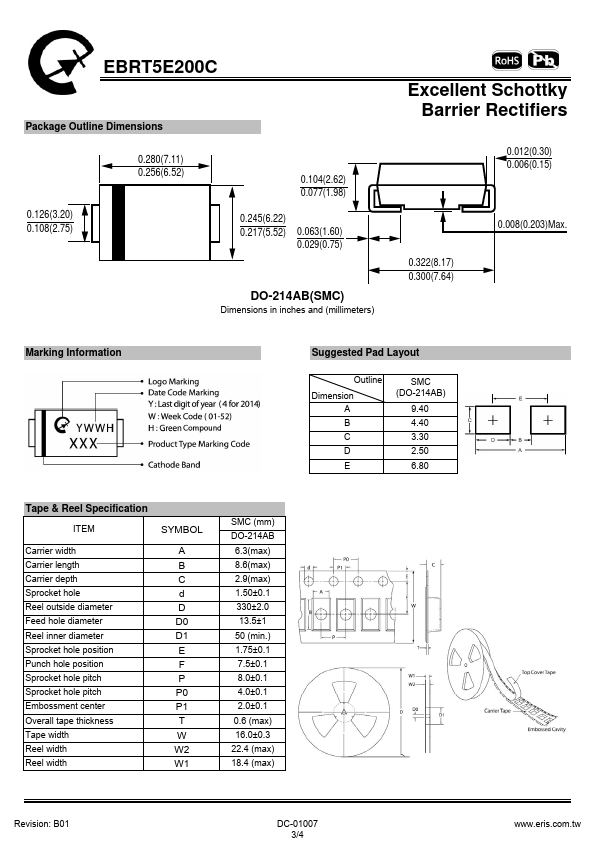

EBRT5E200C Datasheet Preview — Preview of EBRT5E200C PDF

Datasheet Specifications

Part number: EBRT5E200C
Manufacturer: Eris
File Size: 291.12 KB
Datasheet: EBRT5E200C-Eris.pdf
Description: Excellent Schottky Barrier Rectifiers

Features

* ‧High current capability ‧High surge current capability ‧Low reverse current Mechanical Data ‧Case：DO-214AB (SMC) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weig

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
